Processing principle and advantages

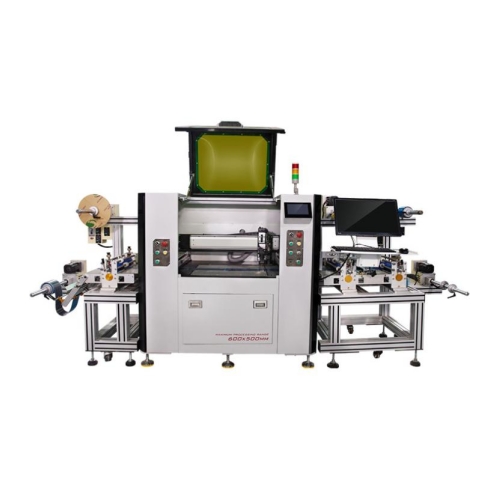

1. This machine uses CO2 laser with wavelength of 9.3-10.6μm to focus and fuse non-metallic materials, with precision grinding grade ball screw and precision marble with minimal volume expansion coefficient to complete the cutting function of the graphic walking mechanism.

2. The machine is equipped with CCD visual camera component, which can realize the function of automatically grabbing fixed point; It can be cut twice, and the accuracy of the sleeve can reach 0.05mm.

3. The machine is equipped with exhaust gas extraction pipeline, which can pump the toxic exhaust gas generated by the laser fuse to the gas purification equipment to ensure that the production room is not polluted by exhaust gas.

4. Excellent laser control system, can accept CorelDraw, AutoCAD documents for graphic editing; The cutting parameters can be set according to the line color, and the whole break, half break and engraving work can be performed.

5. The machine adopts the United States coherent CO2 RF laser generator; The RF driver is housed in the same housing as the laser head, resulting in a compact, rugged system that can operate in the most demanding environments for trouble-free production in your 7x24h go-to environment. The laser is air-cooled, which saves you the trouble caused by the coolant.

6. This machine adopts Nanjing wavelength optical lens group to ensure high efficiency and low attenuation of optical path.

7. The machine is configured with servo pulling function, which can be used for traditional sheet metal processing mode, and can also meet the continuous processing of coil, improve production efficiency and adapt to different processing technologies of products.

8. Applicable material range: 3M/EVA/PET/PC/PAPER/OCA/ Polarizer/anti-peeping film/optical film backlight/foam/optical film/leather/electronic insulation material/double-sided tape, etc.

Mainly parameters

Working condition

List of major device configurations

Daily maintenance and maintenance

Picture for reference
