Automatic 18560 21700 32650 26650 Etc Cylindrical Cell Production Line/Lithium Cylindrical Battery Plant

  • Brand :

    Lineng
  • Item NO :

    LN-Auto-CY-01
  • Compliance :

    CE Certificate
  • Payment :

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty :

    Two Years Limited Warranty With Lifetime Support
  • Delivery Time :

    In stock

  • Tel :

    +86-13506084915
  • Whatsapp:

    +86-13506084915
  • WeChat:

    18659217588
  • Email:

    cassie@lionbatterymachine.com
  • Product Details

Automatic 18560 21700 32650 26650 etc Cylindrical Cell Production Line/Lithium Cylindrical Battery Production Plant

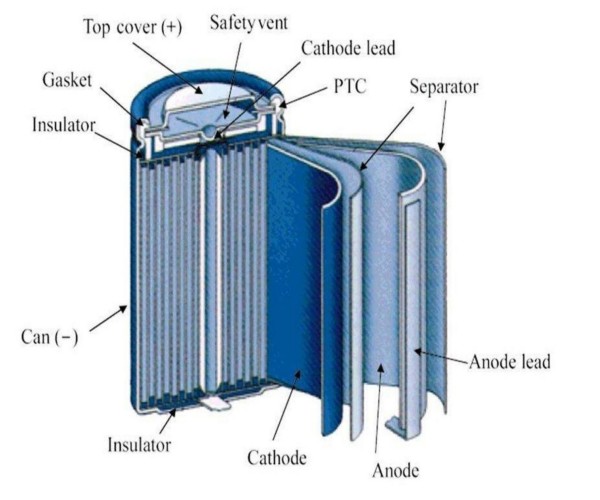

Ⅰ、Cylindrical cell components:

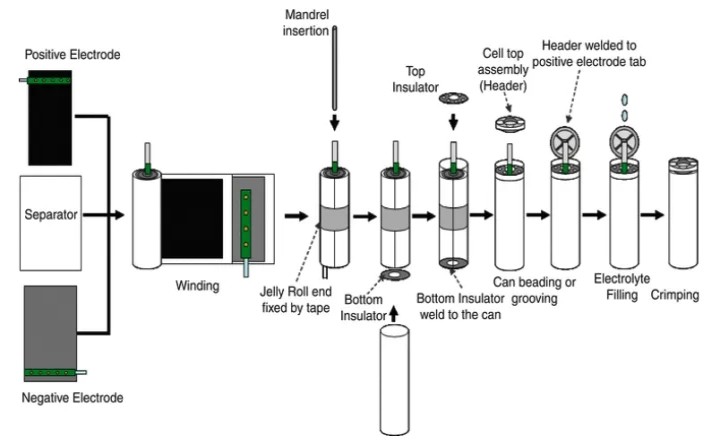

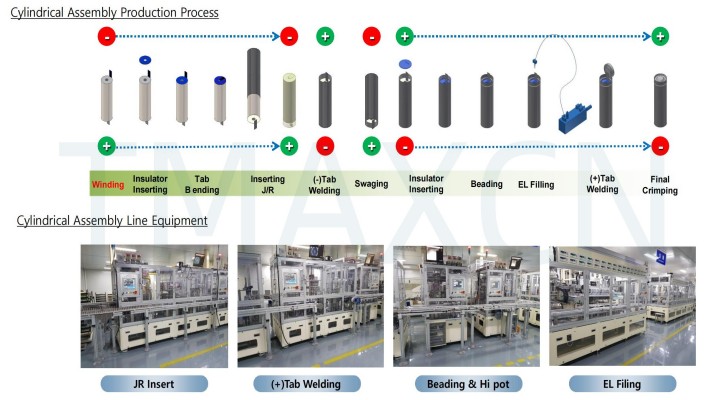

Ⅱ、Flow chart for how cylindrical cells are assembled:

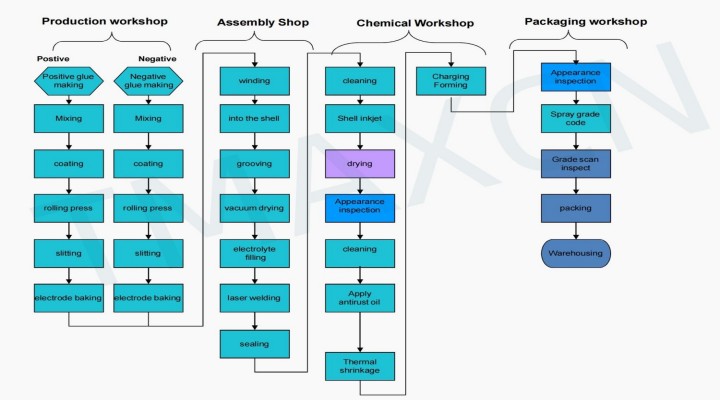

Ⅲ、Cylindrical Battery Process Chart:







Ⅳ、Cylindrical Cell Drawing Information required for designing the battery formula.

4.1 General information on target cell technology:

Dimension

Unit

Cell Design

Chemistry

Capacity

Ah

Nominal Voltage

V

Cell format

Cell weight

g

Target capacity per year(net)

Gwh

Target OEE

%

Shift per day

#

Hours per shift

h

Working days per year

d

4.2 Further information on cell technologies:

Housing

Jelly Roll

Electrode Spec

Electrolyte

Anode Slurry

Cathode Slurry

Formation & aging protocol

EOL

Final grading

4.3 Cell drawings

Ⅴ、Machinery List:

S NO.

Workshop

Equipment Name

1

Cathode

Oven

2

Planetary Vacuum Mixer

3

Turnover Barrel with lifting system

4

Viscometer

5

Coating Machine

6

Thickness Gauge

7

Continue Pressing Machine

8

Auto Slitting Machine

9

Baking Oven

10

Anode

Deionized water machine

11

Planetary Vacuum Mixer

12

Turnover Barrel with lifting system

13

Viscometer

14

Coating Machine

15

Thickness Gauge

16

Continue Pressing Machine

17

Auto Slitting Machine

18

Baking Oven

19

Assemble

Auto Winding Machine

20

Short Testing Machine

21

Bottom Shell Welding Machine

22

Auto Grooving Machine

23

Baking Oven

24

Filling and
sealing

Glove Box
Filling Machine (Hibar Pump)
Vacuum Standing Machine

25

Laser Welder

26

Linear Sealing Machine

27

Battery Cleaning Machine

28

PVC Shrinkage Machine

29

Cartoning machine

30

Grading

Formation Machine

31

Computer

32

High temperature storage

33

Normal temperature storage

34

Cell Inkjet Printer

35

OCV1



36

OCV2

37

OCV3(Sorting machine)

38

Grading Machine

39

Sorting machine

40

Other

NMP recovery system

41

Plant dehumidification system

42

Purified water

43

Other Necessary

Vacuum Pump + Compressed Air
Machine + Cooling Drying Machine

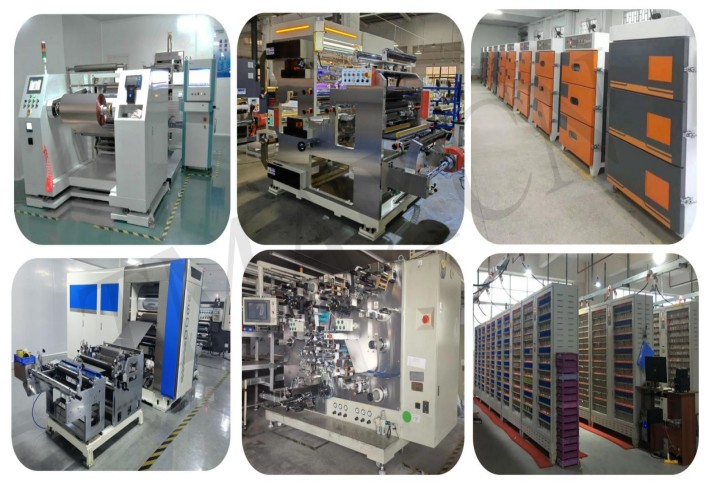

Ⅶ、Battery Prodcution Workshop Reference:







Ⅴ. Procurement process

Lineng follows a comprehensive procurement process to ensure a seamless experience for our customers.

1) Initial Consultation: We have an in-depth discussion with the customer to understand their battery production requirements, machine specifications, and budget constraints.

2) Proposal Preparation: Based on the consultation, we create a detailed proposal that outlines our recommended battery-making machines, pricing, delivery timelines, and additional services or support.

3) Proposal Presentation: We present the proposal, highlighting the features and benefits of our machines, addressing customer questions, and explaining how our solution meets their needs.

4) Negotiation and Agreement: We engage in negotiations to address concerns and modify the proposal if needed, aiming to reach a mutual agreement on pricing, terms, and conditions.

5) Purchase Order: The customer issues a purchase order (PO) that formalizes the agreement, specifying quantities, prices, delivery dates, and contractual obligations.

6) Order Fulfillment: We manufacture or source the battery-making machines according to agreed specifications, conducting quality control checks to ensure high performance and reliability.

7) Shipment and Delivery: We handle packaging, transportation, and customs clearance, providing tracking information and updates on the shipment's status.

8) Installation and Training: Our technicians offer installation services and comprehensive training on machine operation, maintenance, and troubleshooting.

9) Post-Sales Support: We provide ongoing customer support, including assistance with spare parts, maintenance, upgrades, and expansions, to ensure customer satisfaction.

By following this streamlined procurement process, we deliver high-quality battery-making machines tailored to our customers' requirements while providing excellent support throughout their lifecycle.
