Brand :
LinengItem NO :
LN-HZX-F250Compliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockTel :
+86 13174506016Whatsapp:
+86 13174506016WeChat:
18659217588Email:
cassie@lionbatterymachine.comIntroduction
Compact body appearance; Easy to use, strong and durable
The whole machine strengthens the fuselage structure, environmental protection painting, high precision servo positioning PLC+ large size touch screen operation, double frequency speed regulation, the whole machine imported NSK bearing and electric control.
Uses and features
Automatic cutting table, simple and convenient operation, easy to use, high precision, fast speed, can effectively improve work efficiency and product quality, low failure rate, easy maintenance. It can be widely used in cutting all kinds of tape and non-adhesive materials, such as: BOPP tape, double-sided tape, paper tape, PVC tape, PET tape, duct tape, foam tape, 3M tape series, polyester film tape, gold finger, Mara tape, PE protective film, copper foil tape, aluminum foil tape, non-woven fabric, and release paper, etc.
Technical parameters
Model number | LN-HZX-F250 |
Maximum feed width | 1300 mm |
Maximum cut roll diameter | 250 mm |
Minimum cut roll width | 1 mm |
Positioning accuracy | ±0.1 mm |
Cutting shaft specifications | 1-3 inch |
Swing function | Manual swing angle |
Control of motor speed | 0-50 |
Size | 2300*1100*1300 mm |
Power supply | 220V/380V |
Weight | 750 KG |
Total power | 4.5 KW |

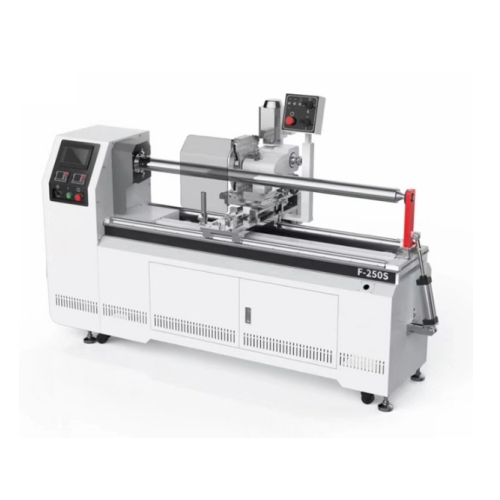

Picture for reference
