Application and characteristics

1. This machine is suitable for continuous blanking of non-metallic coil material with the same specification and large quantity by forming cutter die. For example, it can be used in football, volleyball, tennis, sandpaper, medicine and other industries.

2. The microcomputer controls the horizontal movement axis of the machine and the feed axis to coordinate the movement, so that the machine automatically completes the blanking action on the material, and the displacement distance of the punch and the feed length can be accurately set, greatly reducing the loss of scrap material, saving material 10% ~ 15%.

3. The machine has a variety of working methods such as point, manual, automatic, etc., and the workers only need to pick up the finished materials, which reduces the labor intensity and mentions the work efficiency.

4. The machine has the punching mode of dislocation, dislocation reduction, tool die transposition, etc., which can extract materials and greatly reduce the consumption of materials.

5. Because the machine is controlled by microcomputer, the degree of automation is high, the whole machine only needs one worker, the production efficiency can be increased by 3-5 times, and the energy saving is nearly 1/3.

6. Special setting mechanism, with cutting knife and cutting height setting, so that the stroke adjustment is convenient and accurate.

Optional: single axis, double axis optional; Cutting plate micromotion device; Special specifications can be customized.

Main technical parameters

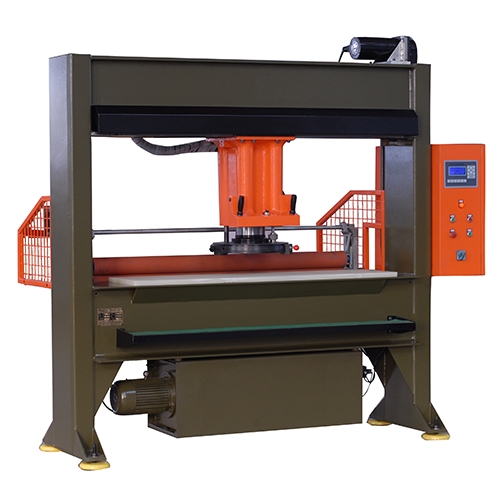

Picture for reference
