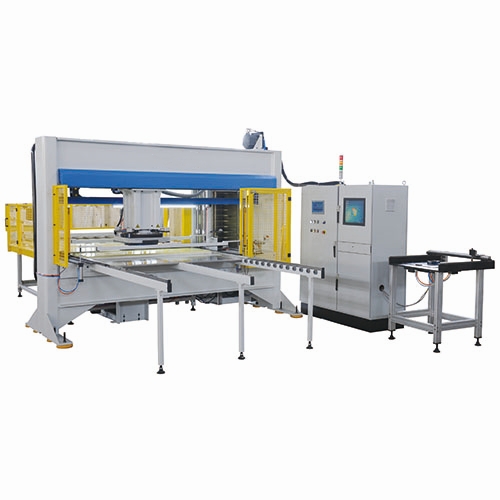

Automatic Digital Controlled Leather Beam Cutting Press Machine

  • Brand :

    Lineng
  • Item NO :

    LN-HSYT-300
  • Compliance :

    CE Certificate
  • Payment :

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty :

    Two Years Limited Warranty With Lifetime Support
  • Delivery Time :

    In stock

  • Tel :

    +86 13174506016
  • Whatsapp:

    +86 13174506016
  • WeChat:

    18659217588
  • Email:

    cassie@lionbatterymachine.com

Contact Us

news products

  • Product Details

Main uses and features:

1. This cutting machine is suitable for continuous blanking of various non-metal roll and sheet materials by forming knife die, and can be applied to clothing, shoes and hats, bags and bags, toys, medical equipment, cultural goods, sporting goods and other industries.

2. The machine is controlled by the upper computer, with knife imitation shape, electronic graphic input, automatic typesetting function, and displayed on the screen, can accurately control the machine X, Y, Z, β four directions of the movement, the punch according to the position of the typesetting automatic punching.

Computer control, typesetting software typesetting

3. Specially designed oil circuit system, high pressure. Use flywheel energy storage to save energy. The punching frequency can reach 50 times/min.

4. The cutting machine is equipped with a tool library (the standard is equipped with 10 knives, which can be increased or decreased according to demand), which automatically changes the tool of different specifications and takes the material.

5. The machine has automatic bar code recognition function, which can automatically identify the tool mold according to the instructions of the computer to prevent errors.

6. The machine has a memory function and can store a variety of working modes.

7. The machine adopts rodless cylinder to control the entry and exit of the tool die, which runs smoothly and fast.

8. The machine adopts a sliding plate feeding mechanism with automatic circulation laying function, which can punch very thin and soft roll materials, and can also punch sheet materials.

9. Servo motor drive, accurate feed position; Servo motor drive, ball screw drive, to ensure accurate positioning of the punch; The servo motor is used to rotate the punch to ensure the accurate blanking position. The servo motor is used to control the position of the tool die in the tool library, which has high efficiency and accurate positioning.

10. There is a protective net installed around the machine and a safety light curtain installed at the discharge port to improve the safety of the machine.

11. German control systems

12. Special specifications can be customized.



Technical parameters

Model number

HSYT-300

HSYT-350F

HSYT-500G

HSYT-800A

Maximum cutting force (KN)

300

350

500

800

Blanking area (MM)

1600*1850

1600*1850

1600*1850

1600*1850

Punch size (MM)

450*500

450*500

450*500

450*500

Adjustable stroke (MM)

5-150

5-150

5-150

5-150

Total power (KW)

10

12

15

18

Power consumption (KW/H)

3

3.5

4

5

Machine size L*W*H(MM)

600*4000*2500

6000*4000*2500

6000*4000*2600

6000*4000*2800

Weight (KG)

4800

5800

7000

8500



Picture for reference
