Product Introduction:

1, double cylinder, precision four-column double connecting rod automatic balancing mechanism, to ensure that each cutting position cutting depth accuracy 0.2mm.

2. When the cutting head is pressed down, it automatically slows down before contacting the cutter 10mm, so that there is no dimensional error between the top layer and the bottom layer when cutting multi-layer materials

3, because the cutting balance is accurate, it can greatly reduce the loss of the tool die and the cutting plate, and the cutting edge has a better effect, which can reduce the consumption of the cutting plate.

4, man-machine interface, plc programmable control, fault display information, convenient machine maintenance.

5, bilateral motor automatic feeding mechanism, improve work efficiency by 80%

6, frequency conversion control feed, receiving so that the alignment accuracy is controlled at +0.2mm.

7, unique mold setting structure, with the cutting tool and cutting height, so that the stroke adjustment is simple and accurate.

8, the hydraulic system control, to ensure the machine die cutting speed and accuracy, all sliding connection parts using a central oil supply automatic lubrication device, so that wear is reduced to a low. The central automatic lubrication system ensures machine accuracy and increases machine durability.

9, the machine is equipped with safety protection isolation cover, so that the operation is safer

10, the machine is equipped with safety grating, timely protection of operation safety.

11, the machine is equipped with L-type tool clamping device, convenient tool installation and disassembly.(Tool disassembly and installation time is about 15 minutes to complete.)12, the machine can be optional with water cooling device, constant hydraulic oil temperature, stable performance, improve output.

Features:

1, linear guide rail design, frequency conversion control feeding system, repeated feeding accuracy, feed smooth, light and quiet.

2, double station design, the front and back stations can be independently controlled operation, to achieve a machine simultaneously punching two different height of the cutter die, so that the production efficiency is increased to 2 times

3, man-machine interface, plc control system, simple operation, fault display information, easy maintenance.

How it works:

The machine is composed of conveying part, cutting main machine, and electrical parts. The cutter die is fixed on the upper pressure plate of the cutting host, the material is placed on the conveying platform, and the start button on the electric control box is pressed. The material carried by the conveying platform will be fed to the host according to the set length. When the set length is reached, the host will rise after the downward cutting, the conveying part will return to the initial position, the worker will pick up the finished product, and the conveying platform at the other end will start to work, and so on.

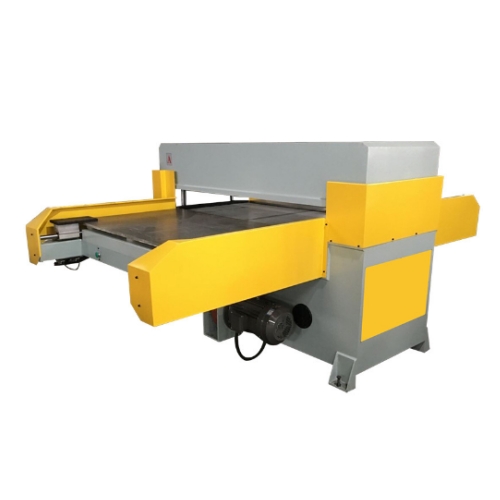

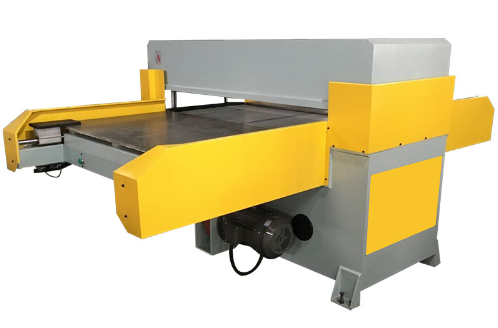

Picture for reference
