1. Uses and characteristics

● This machine is suitable for die cutting of all kinds of non-metallic roll materials. (Automotive interior, garment, grinding and other industries)

● Microcomputer control, simple operation, fast and accurate.

● The main machine adopts double cylinder, double crank connecting rod balance, four-column precision guiding mechanism to ensure that the cutting depth of each cutting position is exactly the same.

When the press plate presses down the contact die, the automatic slow cutting makes the size error between the top and the bottom of the cutting material small.

● The central oil supply automatic lubrication system ensures the service life and accuracy of the machine.

● Equipped with automatic step feeding mechanism, suitable for multi-layer coil feeding, can achieve accurate feeding, feeding length can be easily set on the computer.

● Optional cutting plate micro-motion device, so that the cutting plate uniform consumption, cost savings.

● Optional tool pneumatic clamping device, easy to replace the tool.

● Optional automatic limit stop device, can automatically adjust the limit stop height according to different die, ensure the punching accuracy, extend the service life of the die.

● Special specifications can be specially designed and manufactured according to customer requirements. (Cutting force up to 4000KN 400T)

2. the main technical parameters

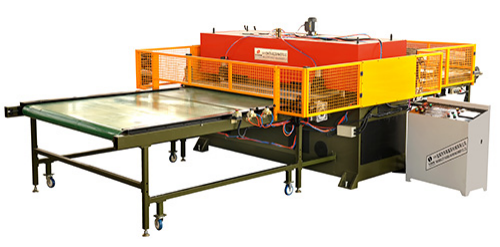

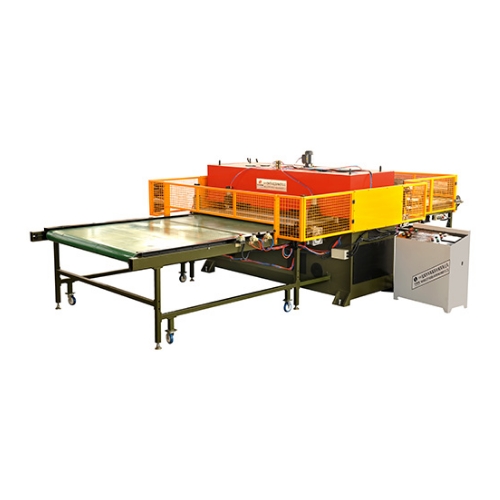

Picture for reference
