Multi-Functional Swing Arm Cutting Machine

  • Brand :

    Lineng
  • Item NO :

    LN-GSB-80/100
  • Compliance :

    CE Certificate
  • Payment :

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty :

    Two Years Limited Warranty With Lifetime Support
  • Delivery Time :

    In stock

  • Tel :

    +86 13174506016
  • Whatsapp:

    +86 13174506016
  • WeChat:

    18659217588
  • Email:

    cassie@lionbatterymachine.com

Contact Us

news products

  • Product Details

Application

Multi-function rocker arm cutting machine is suitable for using small knife die to punch and cut non-metal materials such as ticket holder components, small toys, decorative parts, leather bag accessories.



Features

1. With swing arm rotation freely, easy operation and material selection.

2. The excellent seamless steel pipe is used to process the column, and the upper and lower holes are supported to ensure the flexible rotation of the upper strike plate and good reliability.

3. Use both hands to operate the switch to ensure the safety of the operator.

4. The position of the swing arm is adjusted by the hand wheel at the upper end of the machine, and the blanking stroke is adjusted by the time timer. In this way, the cutting position can be easily obtained, which improves the work efficiency and prolongs the service life of the tool die and the backing plate.

5. Use flywheel inertial energy storage to save energy.



Technical parameters

Model number

LN-GSB-80/100

Maximum cutting force

80/100 KN

Cutting speed

0.07 m/s

Cutting adjustment range

0-60 mm

Distance between upper and lower platen

40-115 mm

Upper swing arm dimension area

380*300 mm

Lower work surface size

650*330 mm

Motor power

0.75 KW

External dimension

660*800*1500 mm

Machine weight

360 kg

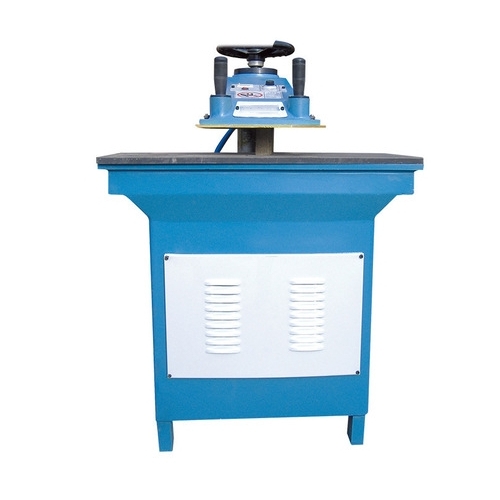

Picture for reference
