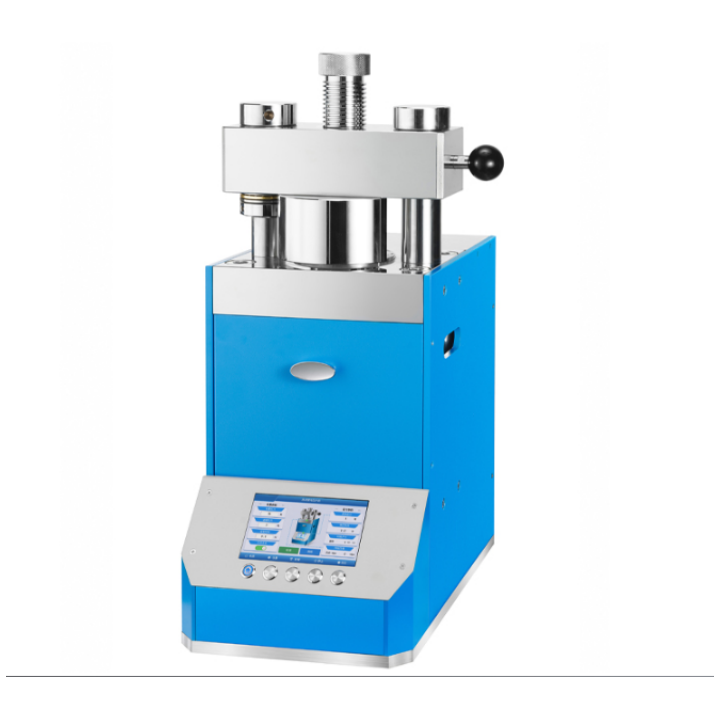

cassie@lionbatterymachine.comThe PP series hot isostatic pressing press is fully automated and operates with a program: pressure application / slow pressure increase / pressure maintenance / pressure compensation / timed pressure relief, with steel plate protection. The operation and production are safer and more reliable, with stable pressure and convenient operation. Currently, the company can undertake non-standard customized products. If you need it, please do not hesitate to contact us.
Model | PP-20R | PP-40R | PP-60R |
Pressure range | 0-20T/0.1t | 0-40T/0.1t | 0-60T/0.1t |
Pressurization Process | 20-stage programmed pressurization with pressure profile display | ||
Pressure holding time | Each stage can be up to 32,768 seconds or run indefinitely without timing | ||
Pressure conversion | Automatically calculate the pressure exerted on the sample based on its shape and | ||
Liquid Crystal Display (LCD) | 7-inches (lPS high-definition) touchscreen | ||
Metal buttons | Silver-plated contacts with a service life of>100,000 cycles | ||
Equipment protection | The upper cantilever structure is more convenient to operate | ||
Pressure safety | The device is equipped with automatic pressure overload protection | ||
Limit switch | The hydraulic cylinder automatically relieves pressure when it reaches the limit height | ||
Cylinder stroke | 50(I) | ||
Cavity Temperature | 0-300℃ | ||
Cavity Pressure | 300Mpa | ||
Cavity Size | Φ30×150mm | Φ40×150mm | Φ50×150mm
|
Equipment power supply | 1600W (220V/110V customizable) | ||
Product Dimensions/ | 280x460x660mm/ | 300x500x680mm/ | 320x500x680 mm/ |
Packaging Dimensions/ Gross Weight | 725x620x890mm/ | 725x620x890mm/ | 725x620 x890 mm/ |
