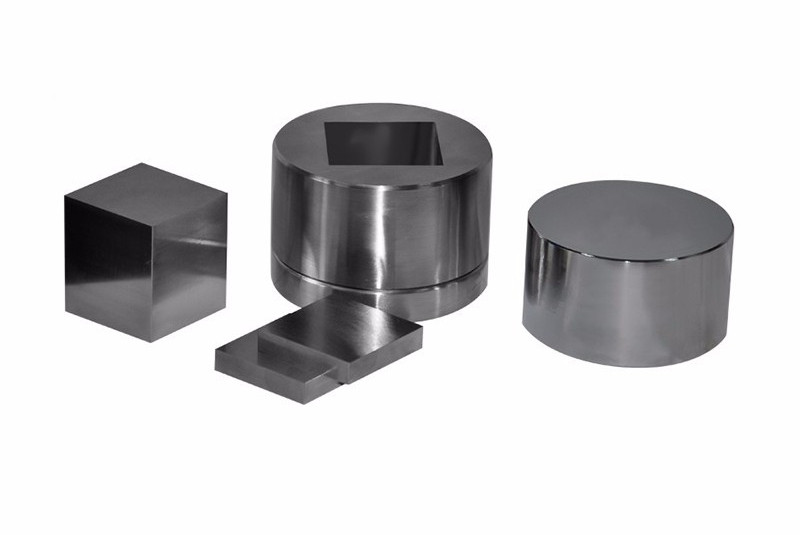

Ordinary square molds are suitable for some easy-to-shape slender powder samples. The mold can be used to form rectangular, square, and strip samples that meet customer requirements for laboratory research and analysis. General die size: 3-80mm, common size: 5-40mm, press sample size is customized according to user requirements. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
Name | Ordinary Square Mold | |||||||
Actual drawing of molding sample | | |||||||
Compressible sample shape | Rectangle, long bar, square, triangle, etc. | |||||||
Mold material | Alloy tool steel:Cr12MoV | |||||||
Hardness of die indenter | HRC60-HRC62 | |||||||
Sample size (≤) | ≤10mm | ≤20mm | ≤30mm | ≤40mm | ≤50mm | ≤60mm | ≤70mm | ≤80mm |
Mold cavity depth | 20mm | 30mm | 40mm | 45mm | 55mm | 60mm | 65mm | 65mm |
Mould dimensions | Ф43×93mm | Ф73×133mm | Ф98×150mm | Ф138×180mm | ||||
Ф53×120mm | Ф88×150mm | Ф118×180mm | Ф158×180mm | |||||
Mould weight | 0.65kg | 1.2kg | 2.4kg | 4.8kg | 7.3kg | 11.4kg | 20kg | 30kg |
Calculation formula of die pressure | Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! | |||||||
Mould remarks | Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold | |||||||
Product Images
