Brand :
LinengItem NO :
LN-PMKCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockWhatsapp:
+86 18659217588WeChat:
18659217588Email:
cassie@lionbatterymachine.com
Parameter
Model | TMAX-PMK-YA |
Compressed sample shape |
|
Mold material | Japanese high speed tool steel ASSAB+17 |
Indenter hardness | HRC68-HRC70 |
Sample size | Φ3、Φ4、Φ5、Φ6、Φ8、Φ10mm(M) |
Cavity depth | 30mm(N) |
Dimensions | Φ43*93mm(L*H) |
Mold weight | 0.75kg |
Dimension diagram |
|
Instrument model | PMK-YE |
Pressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | φ60, φ80 mm(M) |
Cavity depth | 60mm(N) |
External dimensions | φ150x180mm, φ180x180mm(LXH) |
Mold weight | 10kg, 20kg |
Schematic diagram of dimensions |
|

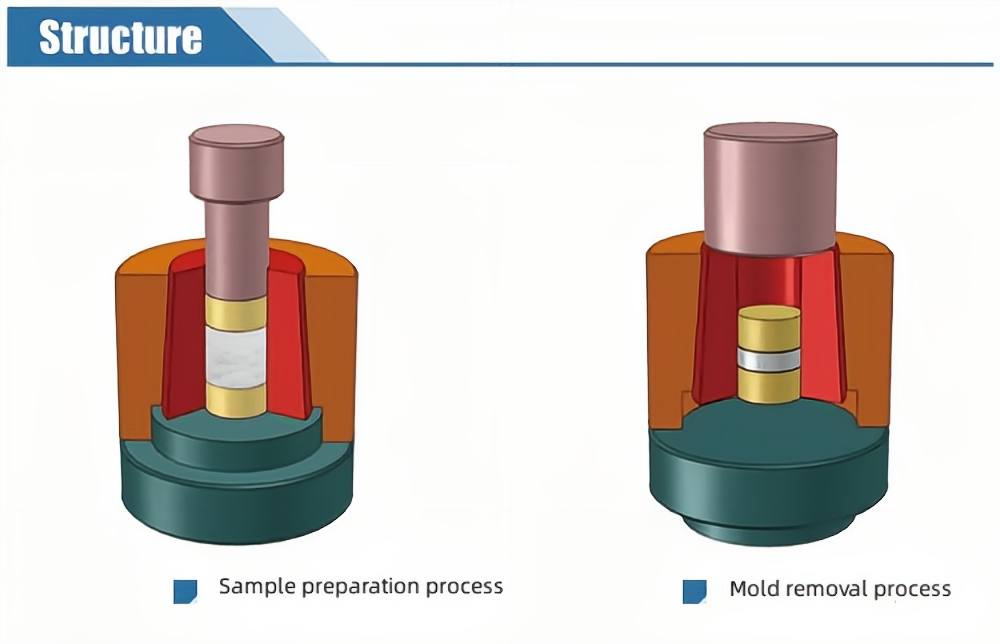

Schematic Diagram of Mold Operation
