cassie@lionbatterymachine.comName | Spherical mold |

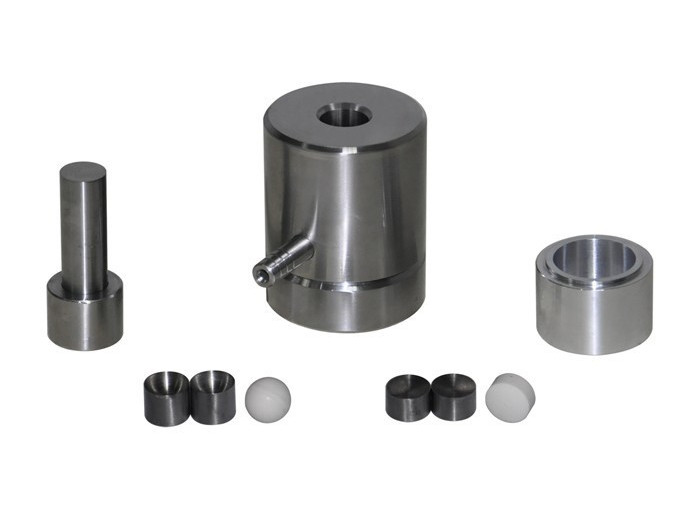

Actual drawing of molding sample | |
Compressible sample shape | Round sphere, hemisphere, spherical cylinder, etc., such as tablets |
Common mold specifications | Ф3, Ф6, Ф8, Ф10, Ф12, Ф15, Ф20mm, etc. |
Mold material | Alloy tool steel: Cr12MoV (can be customized hard alloy steel) |
Hardness of die indenter | HRC60-HRC62 |
Mold cavity depth | 30-40mm |
Mould dimensions | Ф53×120mm |
Mould weight | 1.4kg |
Calculation formula of die pressure | Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
Mould remarks | Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
