Application fields
We are a professional manufacturer of powder tablet presses and molds. Our tablet presses are small in size but have high pressure and high pressure control accuracy. They have been applied in various industries such as research, teaching, testing, pharmaceuticals, catalysis, and chemical engineering. In addition, this product can be used in conjunction with Fourier infrared spectrometers and fluorescence spectrometers for sample preparation, and can replace similar imported products.

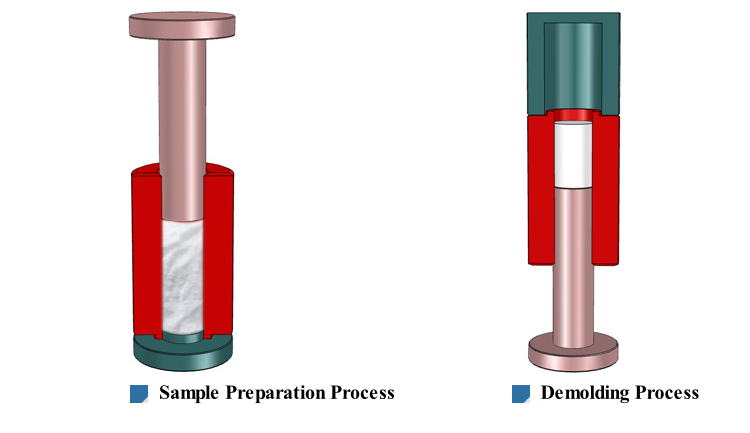

Mold Operation Diagram

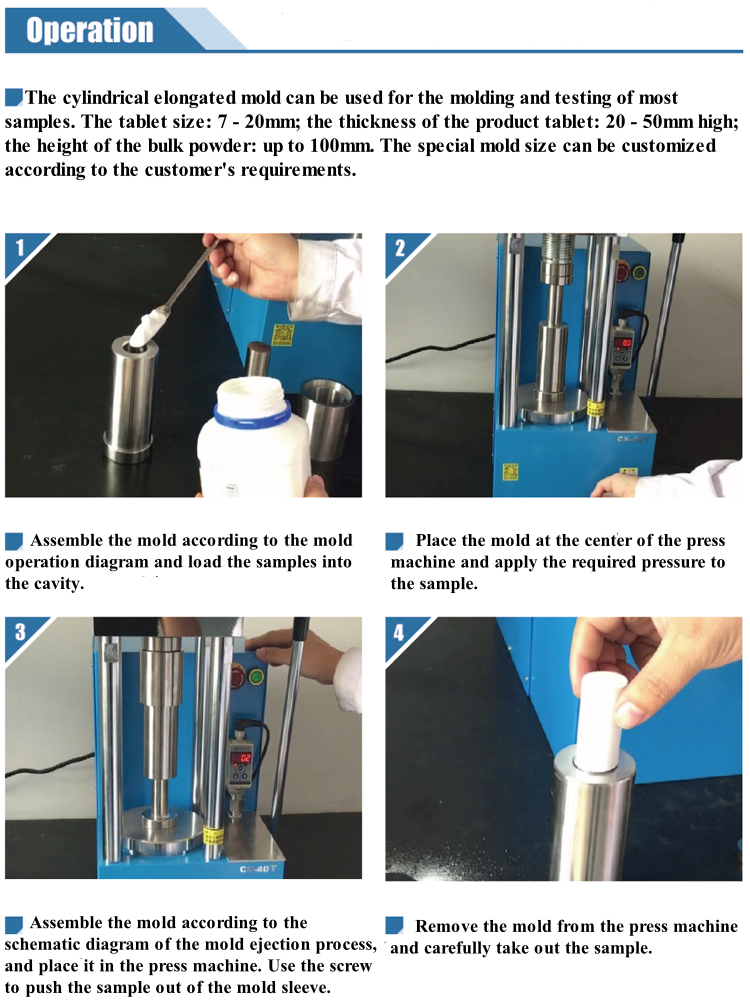

Operating Steps
Product Parameter
Instrument model | LN-PMC |
Sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indentation hardness | HRC60-HRC62 |
Sample size | Φ10、Φ12、Φ13、Φ15、Φ18、Φ20mm(M) |
Cavity depth | 100 mm(N） |
Overall dimensions | Φ53×220 mm (LXH) |
Mold weight | 4.8kg |

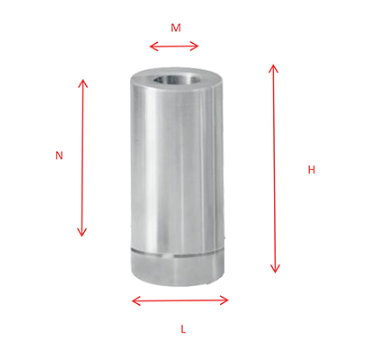

Dimension illustration |
|

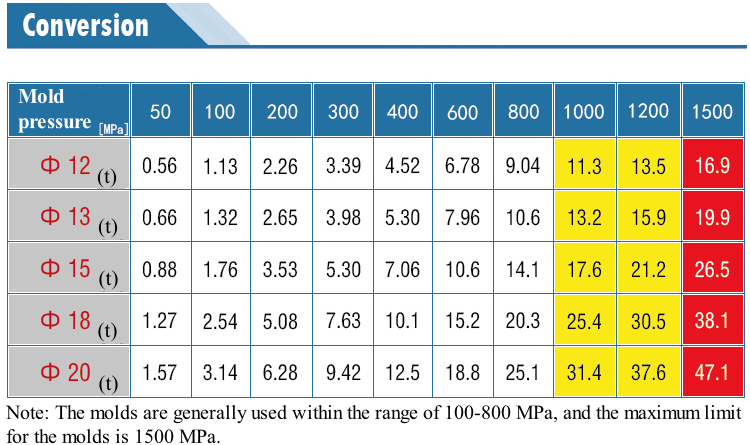

Mold Pressure Conversion Table
