Brand :
LinengItem NO :
LN-PMS-KCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockWhatsapp:
+86 18659217588WeChat:
18659217588Email:
cassie@lionbatterymachine.com
Parameter
Model | LN-PMS-K |

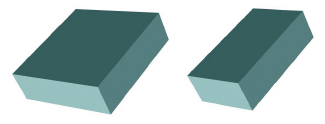

Compressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | 12*12、15*15、18*18、20*20mm(M) |
Cavity depth | 40mm(N) |
Dimensions | Φ88*175mm(L*H) |
Mold weight | 3.0kg |
Dimension diagram |
|

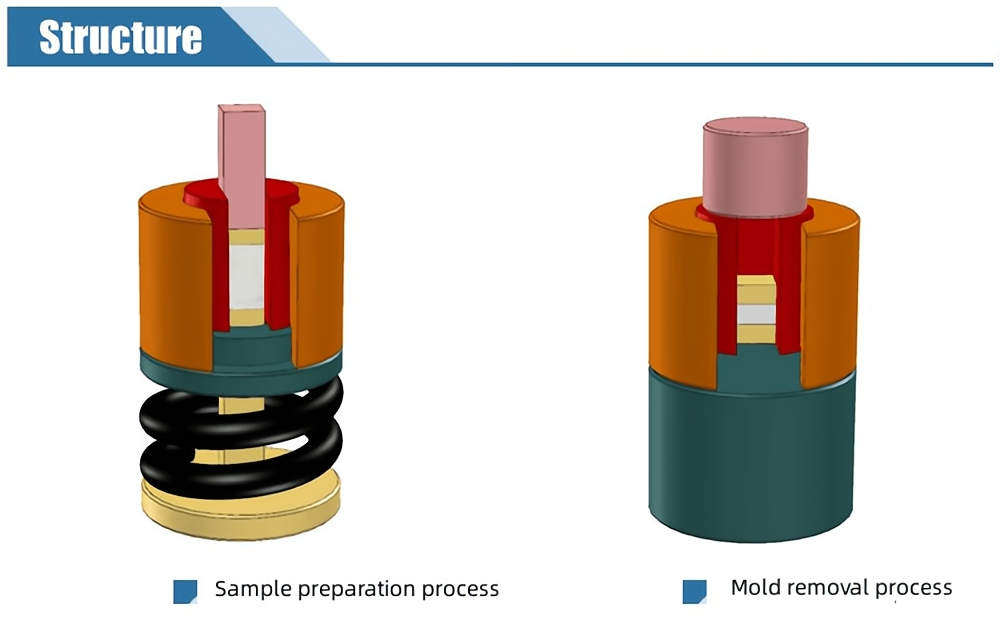

Schematic Diagram of Mold Operation

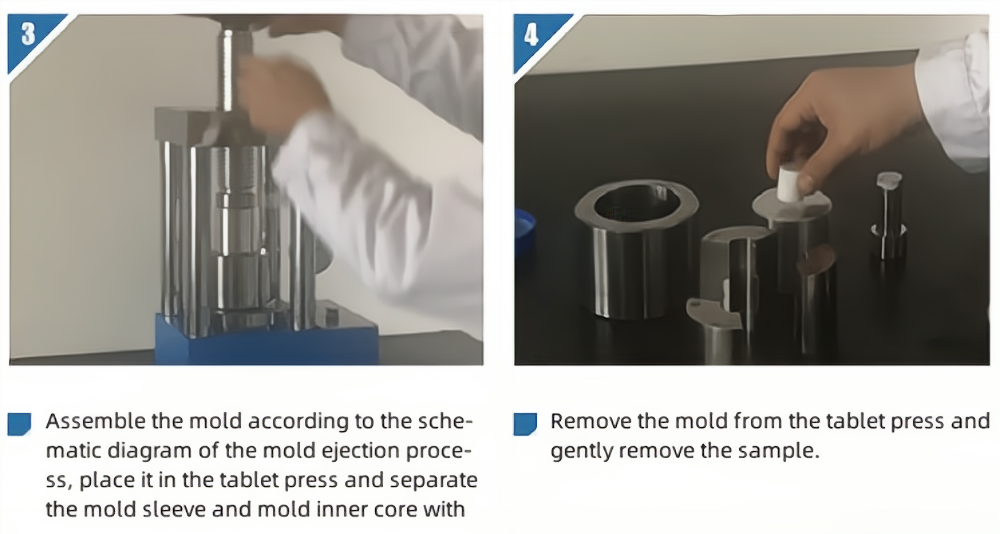

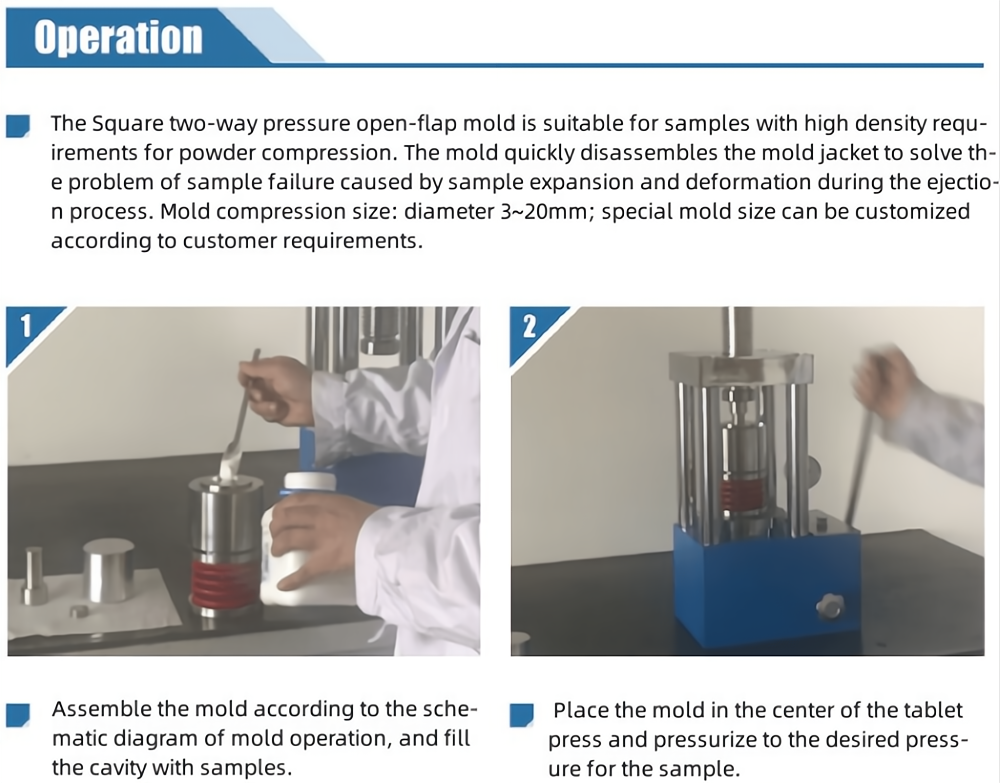

Mold sample preparation operation steps
