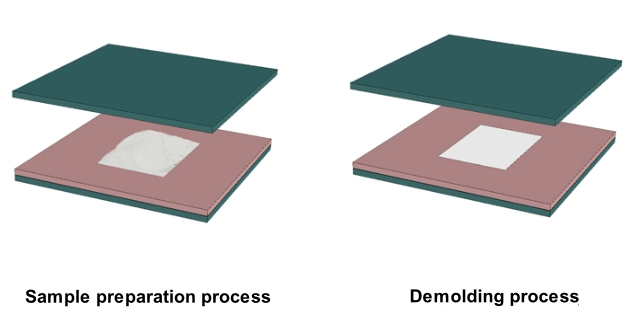

Schematic diagram of mold operation

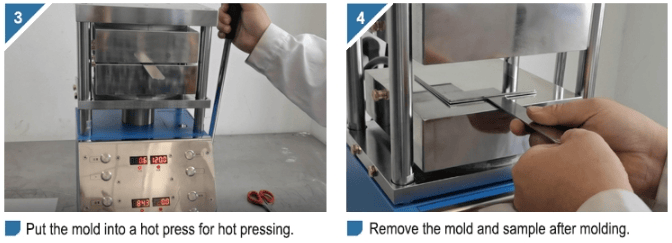

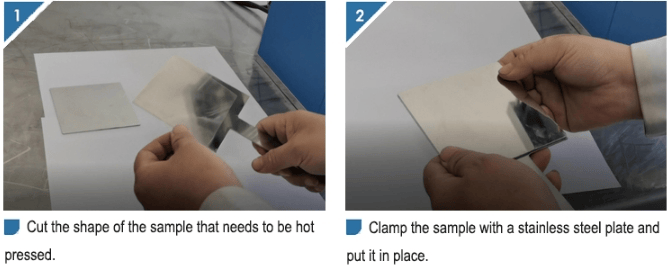

Operation steps for mold sample making

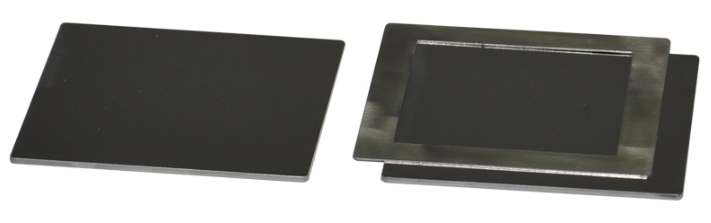

Stainless steel flat molds are suitable for thin-film samples. The thickness of the sample can be controlled through the quantitative plate in the middle, and it is convenient to take out the pressed sample without sticking to the hot press.

Mold usage and maintenance

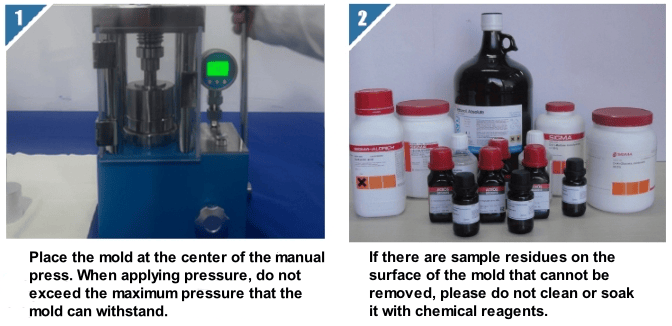

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

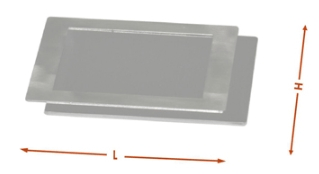

Technical parameters
