Brand :
LinengItem NO :
LN-PMH-PEEKCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockWhatsapp:
+86 18659217588WeChat:
18659217588Email:
cassie@lionbatterymachine.comParameter
Model | LN-PMH-PEEK |
Compressed sample shape |
|
Heating temperature | RT-100°C |
Mold material | PEEK insulating material, suitable for battery testing |
Indenter hardness | HRC60-HRC62 |
Sample diameter | φ10,φ13,φ15,φ20,φ30,φ40 mm (M) |
Cavity depth | 40mm (N) |
Overall dimensions | φ78x138 mm、φ90x138 mm mm (LxH) |
Power supply power | 220V/500W |
Mold weight | 2.7kg |

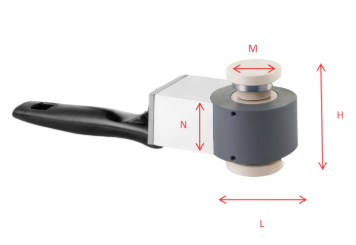

Dimension diagram |
|
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
