Slitting Blade:

I. Technical scheme of slitting machine:

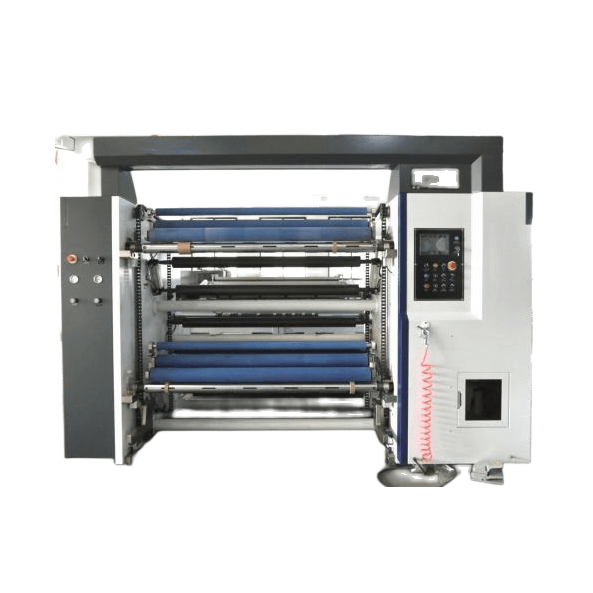

1) Composition of the whole equipment :

1. Hydraulic shaftless automatic feeding of unwinding mechanism

2. One set of main machine (including frame, guide roller, transmission device, slitting device, winding device, etc .)

3. Scrap blowing device 1 set

4. One set of winding device

5. 2 sets of pneumatic system

6. Electric control system 1 set

7. One set of tool box (including one tool box, one set of Allen wrench, 30 * 250 adjustable wrench, slotted screwdriver, cross screwdriver, one internal circlip pliers and one external circlip pliers)

8. Technical data

8. 1 . Equipment operation instructions 1 set

8.2 . Operation manual of frequency converter 1 copy

8.3 . Deviation corrector instructions 1 copy

2) Technical parameters

1. Mechanical speed : 0~300m/min (aluminum foil material cutting speed reference: 0.02~0 .05mm: 80~ 100m/min, above 0.05mm: 50~60m/min, the specific cutting speed depends on material material, thickness, product quality requirements and operator proficiency)

2. Incoming material width range: 100mm- 1150mm

3. Incoming material diameter:   ≤ 1000mm (maximum weighing 3 tons)

4. Inner diameter of winding tube core: 150mm shaftless mechanical chuck (the ordering party shall provide the inner diameter of tube core or sample of tube)

5. Inner diameter of winding tube core: 76mm, 152mm, two pneumatic expansion shafts (the ordering party shall provide the inner diameter of tube core or sample of tube)

6. Striped finished product width:   ≥ 50mm (depending on material material, thickness and winding diameter)

7. Deviation correction accuracy:   ± 0. 1mm

8. Winding diameter:   ≤ 600mm

9. Host power: 1 set of 11kw asynchronous servo motor

10 . Winding motor power: 22kw asynchronous servo motor, 2 sets

10 . Total power of equipment : 58kw 380V 50HZ

11 . Compressed air pressure required by equipment : above 6kg/c  m, 380V (± 5%) - 4-wire 50HZ electrical condition

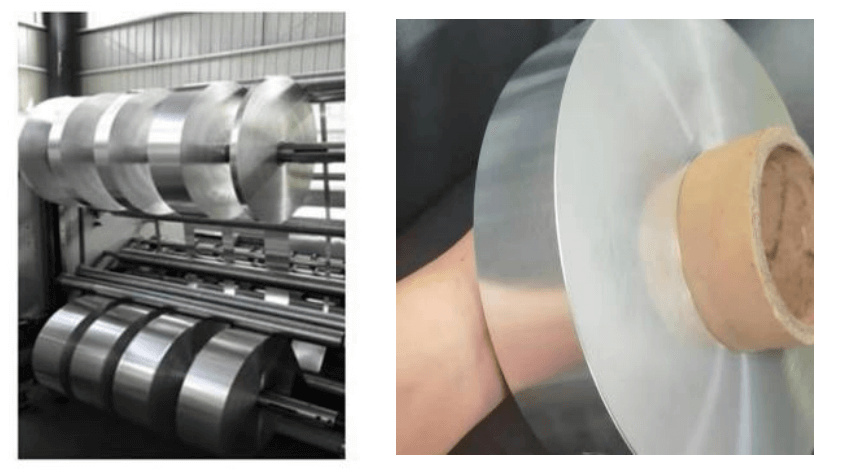

12 . Cutting base material : aluminum foil

13 . Cutting base material thickness: 0.04~0 .4mm , and the equipment configuration and tools applicable to different materials are also different

3) Main performance

1. Operation mode: two-axis central coiling

2. Unwinding Department

2. 1) Ultrasonic servo automatic deviation correction system (bat)

2.2) Split structure, shaftless unwinding and deflection adjustment mechanism, which can be aligned in front, back, left and right

Automatic loading of shaftless mechanical chuck

2.3) 150mm shaftless mechanical chuck, hydraulic automatic loading

2.4) Pneumatic brake controls unwinding tension

3. Material renewal department

3. 1) The equipment is equipped with a material receiving platform, which is easy to operate

3.2) The main structure of the equipment adopts cast iron and steel plate structure (the casting is secondary processing and sizing treatment)

3.3) The main shaft drive rod is made of seamless steel pipe . After quenching and tempering, surface hardening, soldering and dynamic balance processing

3.4) The feeding guide rod is made of metal rod (aluminum alloy material) and rubber rod (polyurethane material)

3.5) The main machine and material receiving transmission mode are synchronous wheel and synchronous belt transmission

4. Cutting part

4. 1) 10 sets of air knives

4.2) Movable tool rest

5. Power Department

5. 1) One 11KW servo motor is used as the main power

5.2) Driving roller (surface high-frequency, hard chrome plating, dynamic balancing treatment)

6. Winding department

6. 1) Two sets of winding shaft lifting, lowering, supporting force and inching control system 6.2) Two 76mm and 152mm pneumatic expansion shafts

6.3) The tension of the winding shaft is controlled separately by two servo motors

6.4) 22kw servo motor * 2 sets for winding

6.5) Heavy chain unloading, convenient and safe

7. Electric control and pneumatic device

7. 1) Interface: touch-type microcomputer control operation . The design of the interface style of this machine is based on the operator's point of view, and integrates the corporate culture of Tmax Machinery to make the user is easy to understand, and the parameter display is clear

7.2) Drive: This machine adopts high-performance servo motor drive system, which is characterized by high accuracy, stable operation and installation convenient .

7.2) Control : pneumatic control and electric control are independently controlled . This machine adopts high-precision control system to realize communication control with the driver. Its characteristics are stable performance easy maintenance .

7.3) Operation: the unwinding tension adjusting button is installed at the unwinding position, which is more convenient to operate

7.4) Line layout : all lines and gas lines of the machine are closed layout to reduce human factors fault .

7.5) Pneumatic components: the machine has more automatic control in terms of functions, so the   selection of pneumatic components is different from the design is considered comprehensively, and famous brands at home and abroad are adopted .

8. Other configurations

    The rotating parts of the machine adopt NSK bearings .

    All mechanical parts of the machine are processed by machining centers and CNC machine

tools .

    The exposed bite part of the machine is designed with a protective door device to ensure the

personal safety of employees .

    All transmission parts of the machine are of built-in design or equipped with protective cover .

    Emergency stop button or emergency pull switch is installed at the operation position of the

machine .

9. Introduction to main functions of the machine

9. 1) This machine adopts German Siemens PLC control system, touch screen, 3 sets of servo motor control, servo motor as main traction, and speed control mode

9.2) Two sets of 22kw high-power servo motors are used to control two reels separately . The  reeling tension is automatically controlled, which increases according to the taper as the reeling diameter increases, and the motor speed decreases proportionally with the increase of the reeling diameter, so that when the reeling material is broken, the car will not fly and the machine will stop  automatically; Automatic taper tension control, automatic tension compensation during acceleration, deceleration and shutdown . Can be rolled at the same time with different diameters

9.3) Tile-type pneumatic expansion shaft reeling, large bearing capacity, 1 ton/piece, heavy chain unloading, convenient and safe unloading

9.4) Automatic taper tension control for unwinding, automatic compensation for tension during    acceleration, deceleration and emergency stop, automatic calculation of inertia during emergency stop of large coil diameter, to keep the material tight and not loose, and emergency stop of large  coil diameter at high speed, with better effect ;

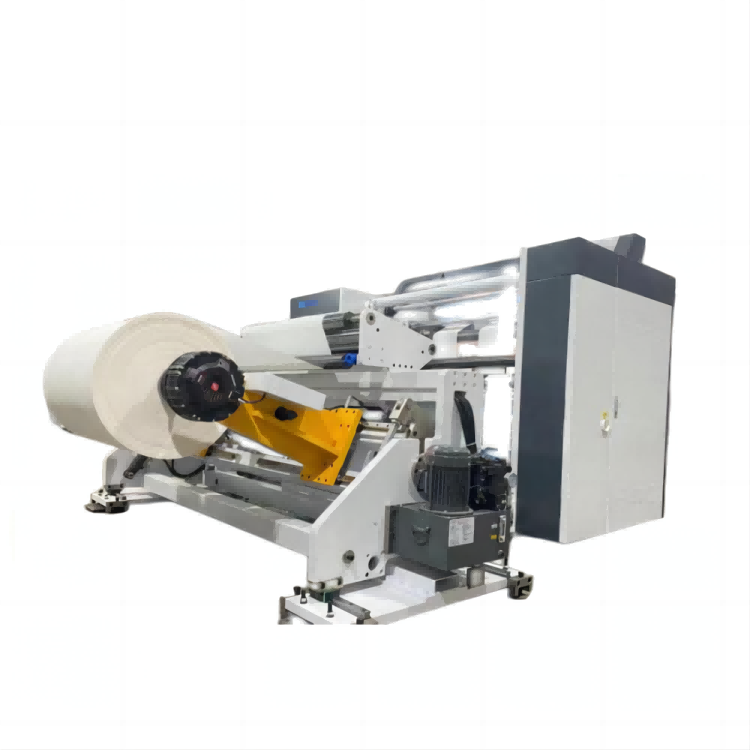

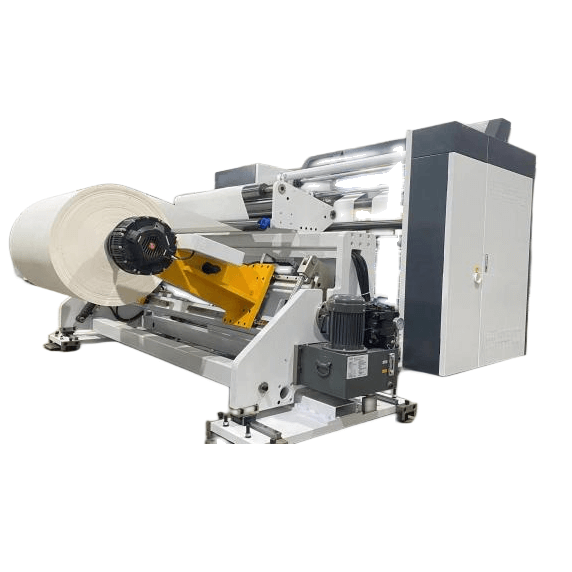

9.5) Unwinding adopts shaftless hydraulic loading, pushing the material to the upper material ,  mechanical chuck clamping the material, and hydraulic automatic loading . Equipped with  405mm+505mm mechanical chuck. The feeding place is equipped with a receiving platform, which is convenient for material renewal, does not waste materials, and is convenient for operation .

9.6) The winding and unwinding diameters are calculated independently and automatically, without the need to input the material thickness, which avoids the wrong operation of thickness setting . The calculation accuracy of the winding diameter is   ＜ ± 1mm . When the unwinding diameter is  close to the paper tube diameter, it can be set to slow down and stop in advance to facilitate  unwinding, changing and receiving;

9.7) The meter wheel of Otonix, South Korea, automatically decelerates and stops by setting the number of meters;

9.8) Ultrasonic deviation correction detection, deviation correction thruster automatically moves left and right to correct deviation;

9.9) Use special air knife for aluminum foil cutting;

9. 10) The system adopts electrical components with high reliability, simple circuit, easy maintenance, high degree of automation and easy operation .
