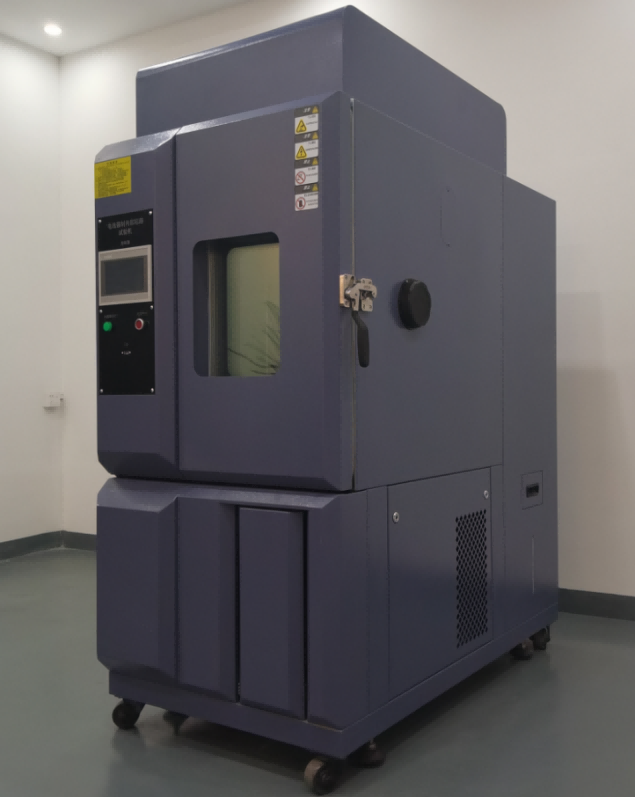

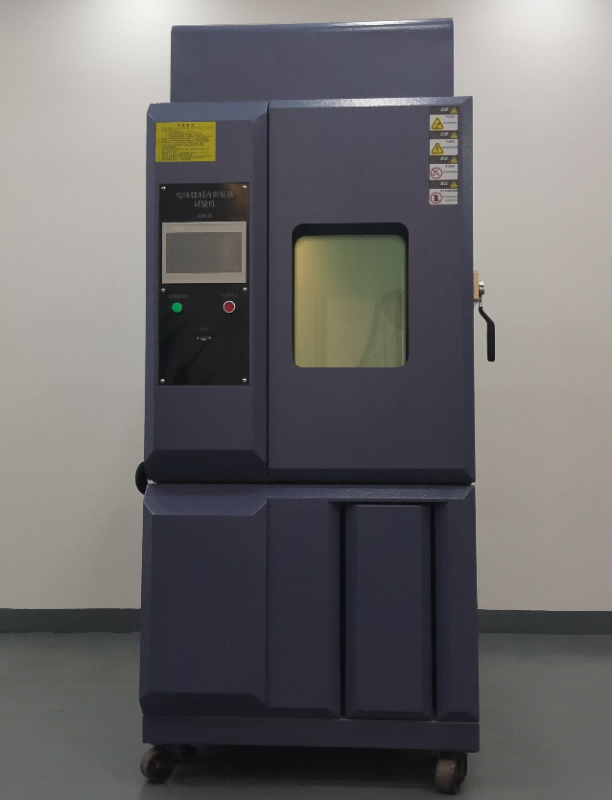

cassie@lionbatterymachine.comBattery Forced Internal Short Circuit Tester
Introduction
The battery forced internal short circuit test machine simulates the forced internal short circuit test of the battery under certain ambient temperature conditions. The test box is made of stainless steel, with good temperature uniformity, and has a ventilation function (that is, exhaust gas after the test is completed). The control system of the testing machine is a PLC touch screen menu operation, and the data collection frequency can reach 100 times per second. At the same time, the test pressure, pressure holding time, measured pressure, battery voltage, battery temperature, pressure drop speed, etc. are set through PLC programming.
Technical parameters
Temperature control system | |
Temperature range | -10℃～100℃ |
Resolution accuracy | 0.1℃ |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | ±2℃ |
Heating rate | 3℃/min |
Cooling speed | 1℃/min |
Inner box size | L500*W500*H600 mm |
Inner box material | 304 stainless steel plate, reinforced at the bottom |
Outer box size | L1050*W1500*H2100 mm |
Temperature control system | Guangzhou Youyi TEMI system controller |
Pressure system | |
Test load | 80Kg (maximum 100Kg) |
Load resolution | 1/10000 |
Unit conversion | Kg, lb, N |
Load accuracy | FS≤±0.5% |
Resolution | ±0.5% |
Accuracy of displacement | ±0.05mm |
Speed range | 0.01～20mm/s, adjustable (common test speed is 0.1mm/s) |
Effective stroke | 100mm |
Test plane | 200x200mm (can be customized) |
Voltage collection range | 0～20V |
Voltage resolution | 0.1mv |
Voltage acquisition frequency | 100 times/s |
Indenter size | 5x5x2mm or 10x10x2mm or 10x10x15mm |
Indenter material | Nitrile rubber and acrylic |
Control system | PLC control |
