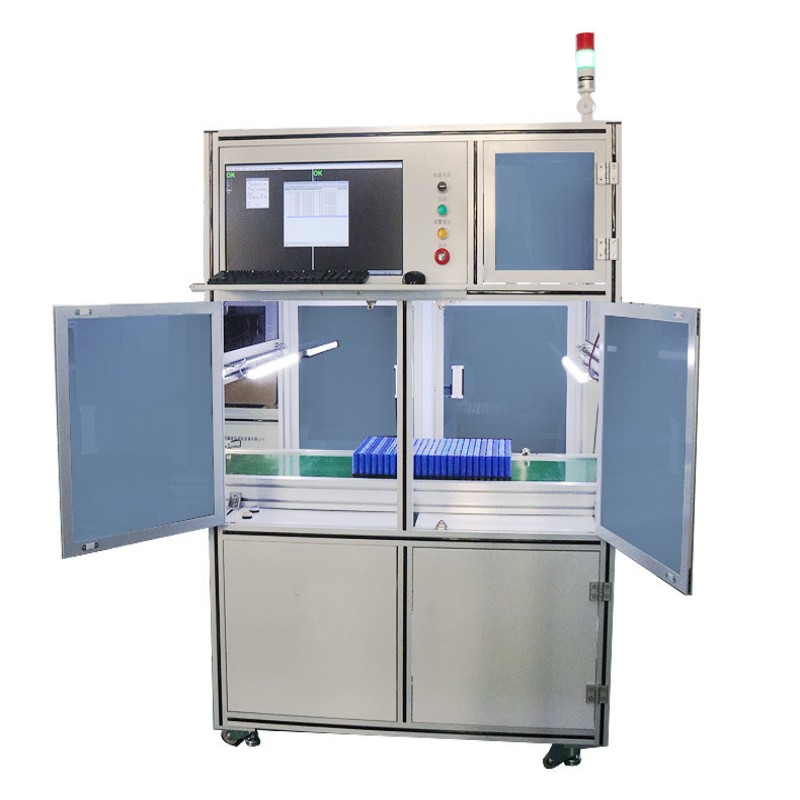

CCD Visual Inspection Equipment For Testing Positive& Negative Poles For Battery Cylindrical Cell

1 .Function description

CCD detector is an automatic equipment for lithium battery processing, which has the function of automatically detecting the positive and negative poles of lithium battery cylindrical cells.

2．Technological process

The cell enters the detection area → sampling and scanning → positive and negative electrode detection → NG automatic detection → OK .

3．Technical parameters of equipment

1. XY axis stroke: 350 * 200 (customizable)

2. Motor transmission speed: 300mm / S

3. Operating system: industrial computer + smart camera

4. Detection method: pipeline type

5. Repeated positioning accuracy: ± 0.1mm

6. Detection efficiency: 1s / PCS

7. Overall power: 500W

8. Overall weight: 150kg

9. Maximum bearing weight: 60kg

10. Input power supply: single phase AC 220V / 50Hz

11. Overall dimension: 1000L * 900 W * 1680Hmm

12. Max number of pieces detected: 15*20pcs (standard: 18650 cell)

13. Number of file groups that can be stored: 99

4 Equipment configuration list

● Display: Philips

● Industrial computer: Microcomputer

● Switching power supply: Jin Shengyang

5.Operating environment

1) Indoor temperature: - 30 ℃ ~ 50 ℃.

2) Indoor humidity: below 55%.

3) Factory site: no pollution, no strong electromagnetic interference.
