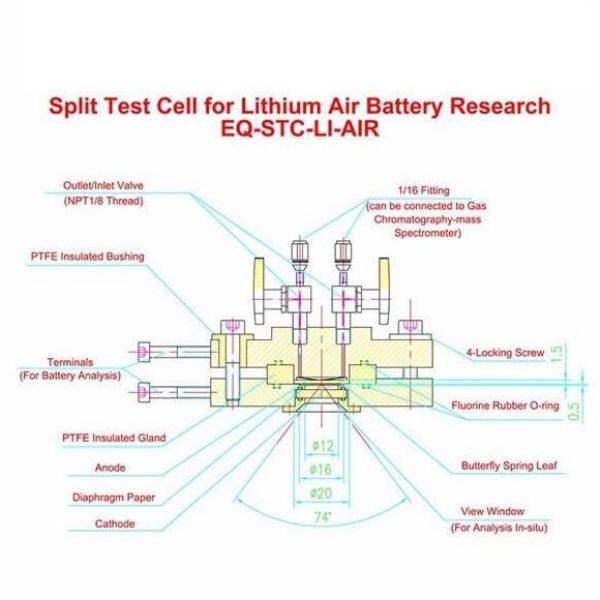

cassie@lionbatterymachine.comCoin Cell Steel Split Test Cell For Lithium Air Battery Research
1. The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research.
2. You can control air flow pressure and test various anode and cathode material at easy.
SPECIFICATIONS:
Structure | 1. Stainless Steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection 2. Two electrodes design 3. Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings 4. Compact design fits in any benchtop glove boxes 5. Grooved area on lower split to fixed position of the anode electrode |
Cell Thickness | 1~3mm (cathode+separator+anode) |
Bottom Recesss Area | 16mm Dia. (The recess area can accommodate the electrodes with size upto 16mm dia.) |
Max. Working Temperature | 200°C |
Valves & Fittings | Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet |
Warranty | One Year limited manufacture warranty with lifetime support |

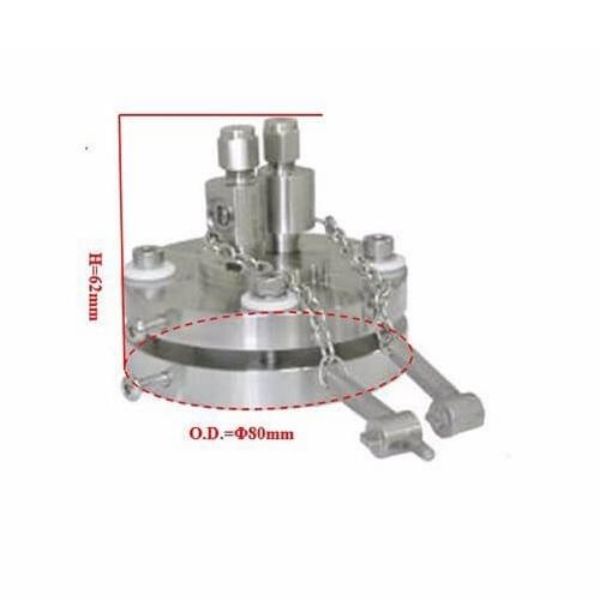

Dimensions | Φ80×62mm |

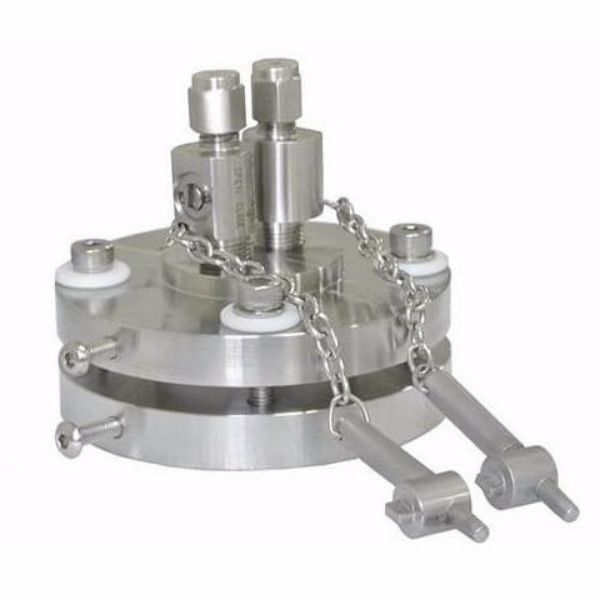

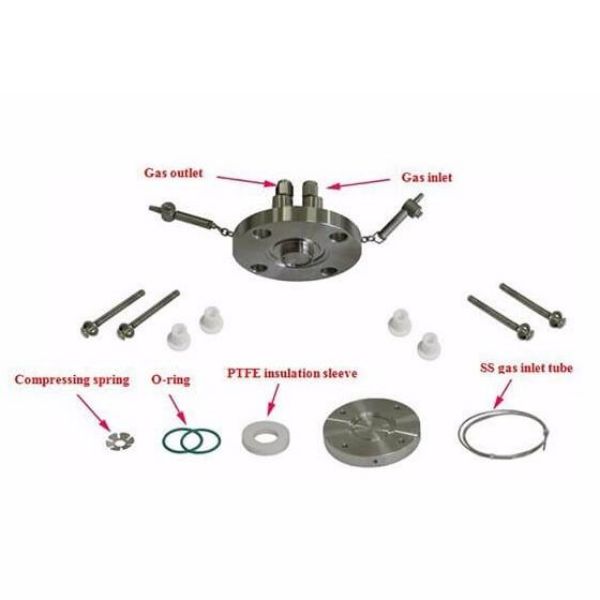

Detailed Image
