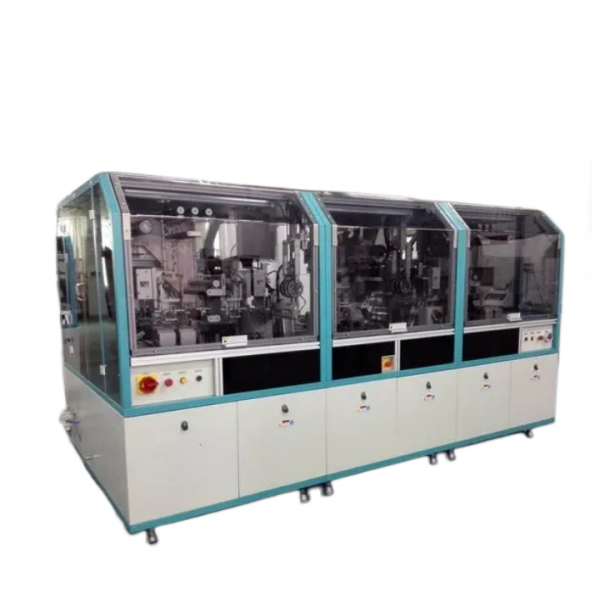

cassie@lionbatterymachine.com1、Equipment parameters and picture
Item | Specification |
Size | L 3410 x W 17600 x H 1900mm |
Weight | 3000KG；（Required floor bearing > 450Kg/M2） |
Power | AC380 50Hz,3 phase, 5 wire system |
compressed air | 0.5-0.7MPa(5kgf-7kgf/cm2) Dry, anhydrous； |
Temperature / humidity | 5-35℃； 10-60% |
Air / dust | No conductive dust; Salt free gas and corrosive gas; |
Magnetic field and vibration | There shall be no obvious impact and vibration; There shall be no magnetic field interference affecting the device； |

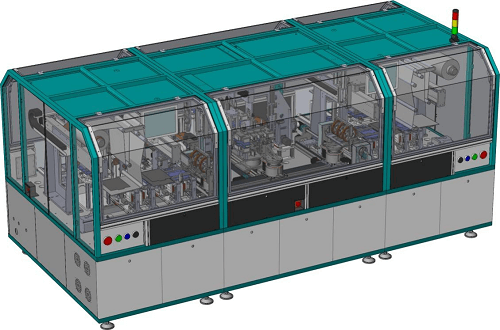

Machine schematic | Remarks: the equipment cover adopts aluminum profile + acrylic |

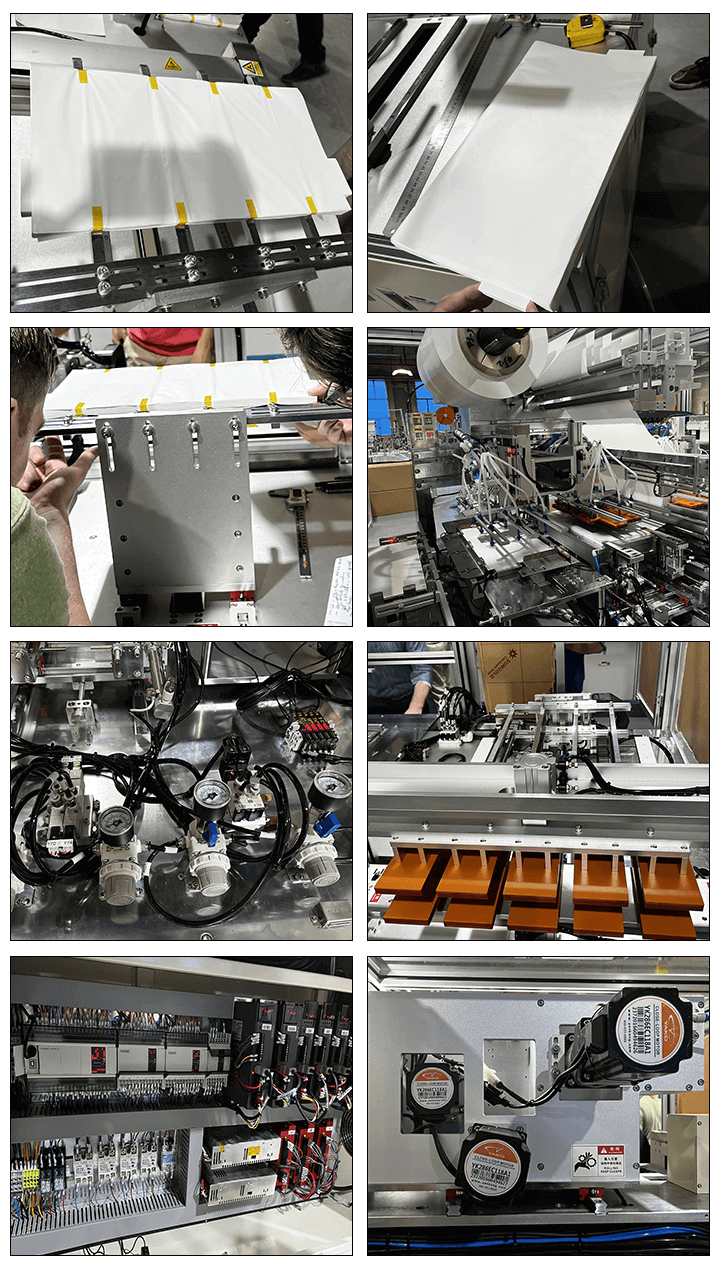

2、Equipment introduction
2.1Equipment Overview
This equipment is mainly used for the "Z" shaped lamination of prismatic battery.
2.2 workflow
2.2.1 the separator is actively unwinded and introduced into the lamination table through the tension mechanism.
2.2.2 the lamination table drives the separator to move back and forth to place the electrode.
2.2.3 two sets of manipulator suction cups respectively take the negative sheet and the positive sheet after bag making out from the two material boxes on the left, and stack them on the lamination table after mechanical positioning.
2.2.4. The two stations stack the film at the same time. After the lamination is completed, the electric core is successively transferred to the gluing station by the manipulator to realize automatic side gluing; Start the next one at the same time
Automatic lamination of cells.
2.2.5 after gluing, complete automatic stacking and receiving at the same time.
2.3 Equipment characteristics
2.3.1 separator mechanism: active unwinding; Tension control; separator correction; separator alignment accuracy +/-0.3mm;
2.3.2 lamination accuracy: ensure the overall accuracy of the electrode in the lamination to reach +/-0.3mm through the precise positioning of the electrode;
2.3.3 lamination efficiency: lamination speed can reach 0.5s-0.8s/pcs;
2.3.4 dust protection: the material box and pre positioning are equipped with effective dust protection hoods;
2.3.5 electrode angle detection: detect the electrode angle to prevent the electrode angle from being folded into the cell after abnormal folding;
2.3.6 prevent the detection of the missing angle of the tab of the electrode, and prevent the electrodes such as the closing and pulling of the tab of the electrode and the missing angle from being stacked into the electric core;
2.3.7 detect the direction of the tab to prevent the electrode from stacking into the electric core after the tab is reversed;
2.3.8 in particular, the bottom of the cell is a continuous two-layer separator.
3、Specification
Item | Acceptance process technical parameters |
Single chip stacking time (double station) | 0.5～0.8s/pcs （It varies according to the size of the electrode, and this speed is double station speed) |
Single cell auxiliary time | ≤12-15S |
Adjacent accuracy of electrode and separator | Center deviation±0.3mm |
Separator end face alignment accuracy | ±0.3mm（Except for tail roll separator） |
Alignment accuracy of adjacent electrodes | ±0.2mm |
Overall alignment accuracy of electrode | ±0.3mm |
Stacking layers | It can be set within the thickness range |
Qualified rate | 99% |
Rate of mobilization | 98% |
Gluing quantity | Adjustable quantity (up to 9 layers of glue) |
4、Equipment configuration
SN | Component name | Qty/set | Instruction | |
1 | electrode material box | 8 | Plug in special material box; Four sets of positive and negative electrodes respectively, with a large adjustable range | |
2 | electrode feeding auxiliary mechanism | 4 | Brush and shaking mechanism; Air blowing and dust suction device; | |
3 | electrode feeding jacking mechanism | 4 | Ensure that the manipulator can reliably absorb the electrode; Automatic shutdown alarm for material shortage | |
4 | separator tension mechanism | 2 | Active unwinding of separator, constant tension | |
5 | separator deviation correction system | 2 | Unwinding correction and recovery correction; | |
6 | Pre positioning module | 4 | Precise mechanical positioning; Dust collection device and dust absorption mechanism are installed | |
7 | Lamination manipulator | 4 | Servo drive ensures that the manipulator can grasp and place the electrode reliably; Feeding box servo reclaiming | |
8 | Feeding suction cup mechanism | 4 | Vacuum nozzle | |
9 | Lamination table | 2 | Servo driven lamination table translation and lifting: precision ball screw realizes the reciprocating movement of lamination table | |
10 | Manipulator clamping module | 1 | The manipulator automatically realizes the transfer of electric cells | |
11 | separator cut-off mechanism | 2 | Hot knife mechanism | |
12 | “C” glue pasting mechanism | 1 | The gluing position and quantity of the side gluing around (including the middle of the pole ear) can be set | |
13 | Stacking and blanking mechanism | 1 | The batteries are automatically stacked and unloaded, and taken away in batches | |
14 | Electrical operating system | 1 | Operate with touch screen, with emergency stop, power switch and other buttons | |
15 | Control system | 1 | Electrical appliances, gas circuits, etc. are installed inside the equipment to save space and facilitate maintenance | |
16 | Frame base plate | 3 | Color: light grey | |
17 | Dust cover | 1 | Aluminum profile + acrylic cover | |
18 | Dust collection mechanism | 1 | Blower dust collection; Pre positioning, material box | |
19 | vacuum system | 1 | Customer provided vacuum source | |
5、Process specification
5.1Material specification
Spec. Material | Material | L(mm) | W(mm) | T(mm) | ID(mm) | OD(mm) |
Cathode | Sheet | 70～250 | 90～200 | 0.05～0.25 | —— | —— |
Anode | Sheet | 70～250 | 90～200 | 0.05～0.25 | —— | —— |
Cathode tab | —— | 10～40 | 10～50 | —— | —— | —— |
Anode tab | —— | 10～40 | 10～50 | —— | —— | —— |
Separator | Roll | —— | 100～200 | 0.012～0.04 | φ76.2 | φ300 |
Tape | Roll | 20-40 | 10～30 | 0.02～0.05 | φ76.2 | φ150 |
Note: 1. The length of the electrode indicates the size of the electrode in the direction of the tab, excluding the length of the tab;
2. The electrode has no obvious powder dropping phenomenon, no obvious wavy edge, and the burr in the direction perpendicular to the electrode is less than 15um; Die cutting error is less than 0.2mm;
3. The incoming materials of the electrode have no obvious warpage and deformation, and the incoming materials of the electrode have no obvious adhesion;
4. Serpentine error of separator: +/-0.2mm/ M.
5.2 Cell specification

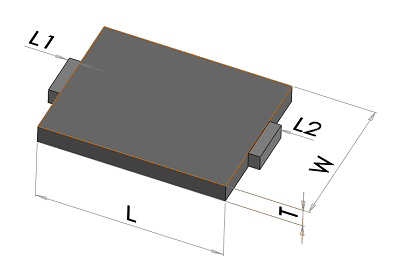

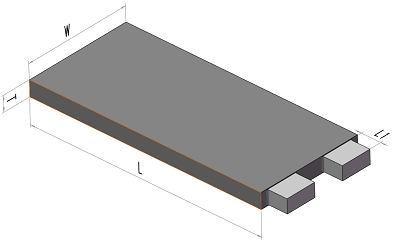

Item | Specification | Schematic diagram of battery |
Battery core L | 70～250mm |   |
Battery core W | 90-200mm | |
Battery core T | 5-30mm | |
Exposed tab 1 | ≤40mm | |
Tab direction | Ipsilateral | |
When the tab is on the same side，L+L1≤ | 300mm | |
Tab spacing | ≥20mm |

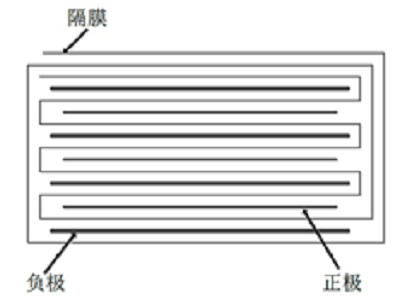

5.3 Stacking diagram

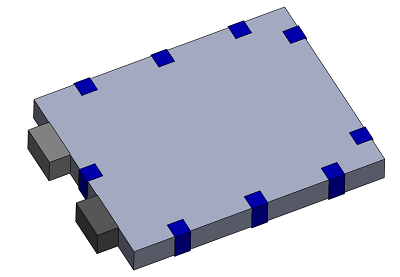

Battery diagram | Gluing diagram |
 |  |
6、List of main spare parts
SN | Name | Brand | Remark |
1 | Machine design and manufacturing and hardware | JOYCREAT Jingyi Technology | |
2 | Cylinder | SMC/ AIRTAC | |
3 | Magnetic switch | SMC/ AIRTAC | |
4 | linear guide rail | HIWIN Taiwan Shangyin | |
5 | Ball screw | HIWIN /TBI | |
6 | Servo motor / driver | Xinjie bus | |
7 | Solenoid valve | CKD | |
8 | PLC | Xinjie | |
9 | sensor | panasonic/ KEYENCE | |
10 | Optical fiber | panasonic/ KEYENCE | |
11 | touch screen | Kinco |
7、Spare part list
SN | Name | Specification | Supplier | Remark |
1 | Vacuum sucker | ZP2-TB15MTS-B5 | Customized | It needs to be cleaned every day, and the delivery cycle is 10 days |
2 | Plastic suction cup | 11*10*85 | Customized | It needs to be cleaned every day, and the delivery cycle is 10 days |
3 | Vacuum sucker rod | ZPT-2K10-B5-A10 | Customized | delivery cycle is 10 days |
4 | Vacuum filter | AZFC200-06 | SMC /AIRTAC | It needs to be cleaned regularly every week |
5 | Magnetic ring switch | D-M9N | SMC /AIRTAC | the delivery cycle is 10 days |
6 | Proximity switch | GX-F8A | Panasonic | the delivery cycle is 10 days |
7 | Pressing plate | Customized | Customized | the delivery cycle is 10 days |
8、Delivery list
SN | Name | Qty | Unit | Remark |
1 | Auto Stacking Machine | 1 | set | |
2 | Random tools | 1 | set | Tools |
3 | Delivery specification | 1 | set | |
4 | Quality report | 1 | set | |
5 | Instruction | 1 | set | |
6 | Accompanying spare parts (and list) | 1 | set | |
7 | Spare part list | 1 | set |
9、Installation environment and supporting facilities requirements
1) ambient temperature：=25℃±5；
2) relative humidity：45≤RH；
3）Ensure that the air on site is dry and smooth；
4）power supply：380V，3phase, 5 wire,50HZ, Voltage fluctuation range：+8%～–8%；The total power of the power supply is not less than 15Kw；
5) Compressed air: after drying, filtering and stabilizing: the outlet pressure is greater than 5.0kg/cm2
