HK3561 Battery Internal Resistance Meter

1.Introduction:

It is a contact-resistance meter capable of providing quick and accurate measurements for the contact resistance of elements such as relays, switches, and connectors and so on.



The HK3561 applies the principle of double-two-terminal to measure.

It is capable of high-speed, high-precision, high-resolution resistance

measurement. It is capable of measuring the resistance of 10mΩ~ 3.2kΩ, and showing the largest number of 3200.



The basic accuracy of 3561 is capable of being up to 0.5%.The voltage measurement range of 3561 is 1mV ~ 60V, the basic accuracy is up to 0.1%.The maximum measurement speed of 3561 is capable of being up to 20 times / sec.



The instrument has professional comparator function.

It has 30 groups of records for bin out. The 3561 is capable of a optional Handler interface,

which is used in automatic comparator system to complete automatic assembly line measurement. Built-in RS232C interface and optional equipped IEEE-488 interface can be used for remote control and data acquisition and analysis.



2. Main Specification:

Resistance Measurement:

⚫ Basic resistance accuracy: 0.5%

Measuring range:10μΩ-3.2kW ,0V-60V

⚫ Four-terminal measurement

Voltage measurement:

⚫ Voltage basic accuracy: 0.1%

⚫ The largest displayed number of 6000

⚫ Auto-range: 6V/60V

Other:

⚫ High-speed and high-precision measurement

Even the speed is up to 20 times every second, it can still maintain

high accuracy measurement.

⚫ Dual display

Show the value of direct-reading measurement as well as show the

absolute bias (ABS), the relative deviation (%), and results of comparator (GD / NG).

⚫ A variety of ways to trigger

Internal trigger, external trigger and remote trigger.

 3.Description:

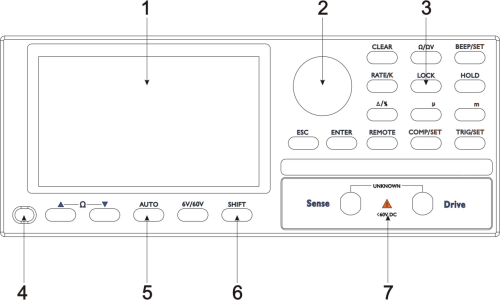

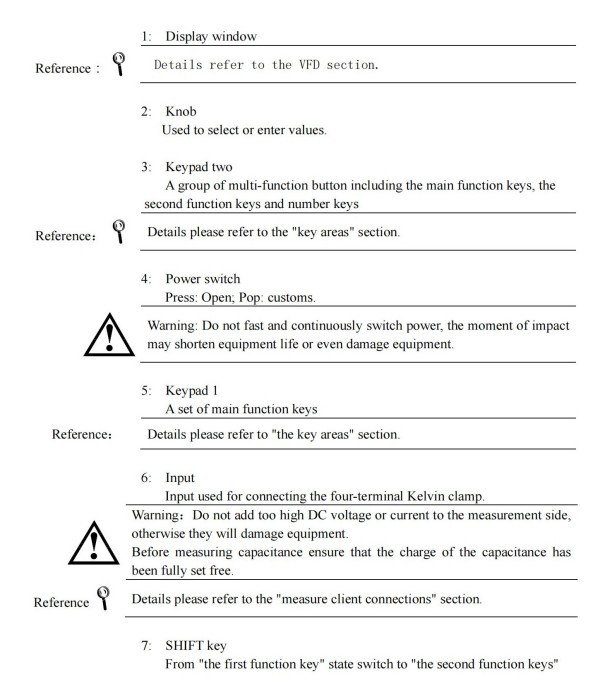

Front Panel

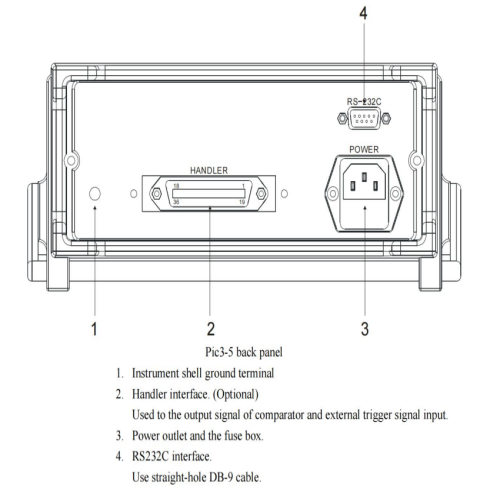

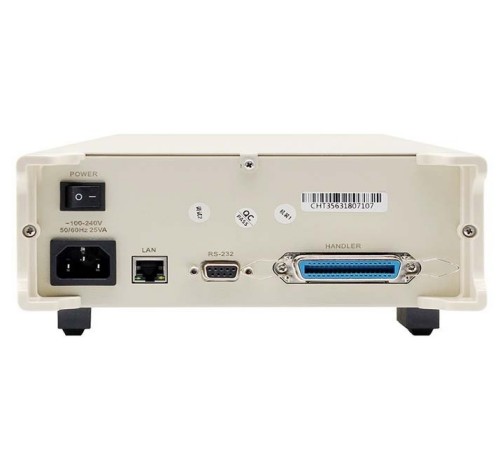

Back Panel
