Lab Battery Extrusion Testing Machine

1. Equipment Overview

The battery needle punching machine is suitable for simulating the compression of various types of batteries during use, transportation, storage, or disposal of household waste. The battery is qualified as not exploding or catching fire.

II. Technical Parameters

1. Transmission method: hydraulic drive

2. Extrusion head plate: Standard circular extrusion plate, easy to disassemble and replace (size is 150mm in diameter)

3. Degree of squeezing: The squeezing continues until the actual pressure reaches 13kN ± 0.2kN,

Hold the pressure for 1 minute, and once the pressure is reached, the equipment will automatically relieve pressure and complete the extrusion.

4. Pressure range: 1 kN~20 kN (commonly used 13 kN)

5. Pressure accuracy: 0.1N, sensor resolution: 1/10000;

6. Unit conversion: kg, N, lb

7. Data sampling: 80 times/second

8. Compressed space: 520 * 500 * 445mm (width * height * depth)

9. Machine extrusion stroke: 320mm

10. Equipment voltage: 380V 50HZ

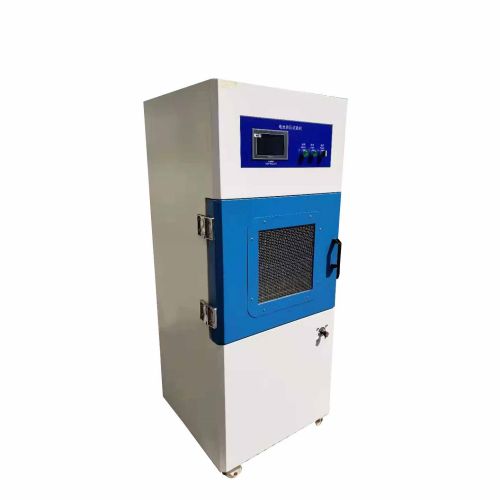

Picture for reference
