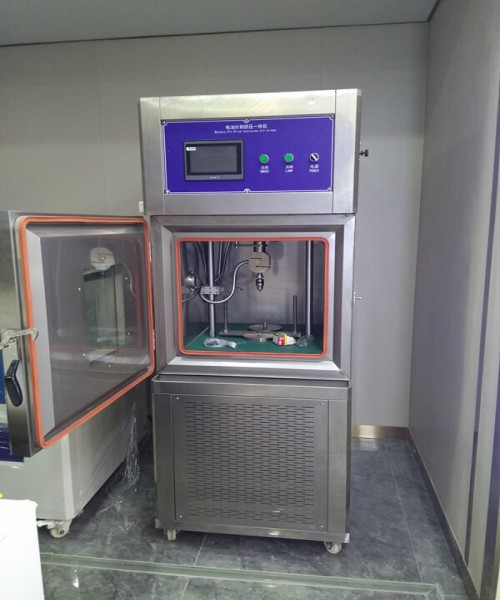

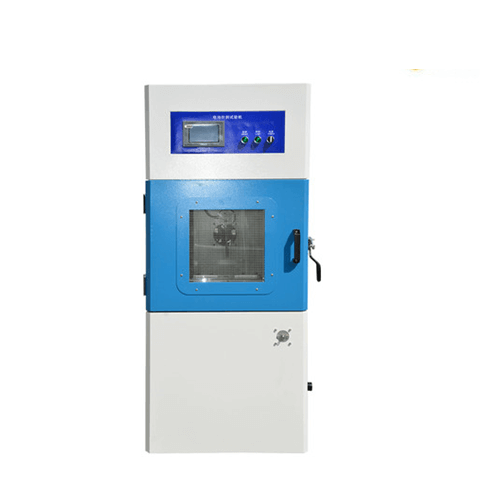

Nail Penetration Tester for All types of Li-Ion Battery

Feature

The test should be carried out at the ambient temperature of 20 ℃± 5 ℃. The battery connected with thermocouple (the contact of thermocouple is fixed on the large surface of battery) is placed in the fume hood, and a 2-8mm diameter stainless steel needle is used to pierce the center of the maximum surface of the battery at the speed of 10mm / s-40mm / s, and keep it for any time.

Applicable standards: MT/T 1051 SAE, QC/T473/744 and other test standards.

This is an economic nail penetration tester for all types of rechargeable batteries. The nail penetration is performed inside a safe and vented stainless-steel test chamber using a 2~8 mm diameter steel nail at variable speed from 10~100mm/s. There is a fixture to tighten various type cells, pouches or cylinders in the test chamber. It is an important tool for advanced research on the rechargeable battery.

Specifications

High temperature resistant steel needle	ф2mm—ф8mm high temperature resistant steel needle, length 100mm
Distance between needle tip and lower part	200mm
Clamping distance	200mm
Needling speed	10-40mm/s, adjustable
Needing force	150~200kg
Force display	Pressure sensor, LCD display
Travel distance	200mm
Driving mode	Hydraulic drive
Chamber features	Fireproof, corrosion resistant and easy to clean.
Chamber size	520 * 500 * 445mm (W * H *D)
Material of outer box	Stainless steel
Material of inner box	Stainless steel box, high temperature resistance, corrosion resistance
Power requirements	220V/110V , 50HZ/60HZ
