Description

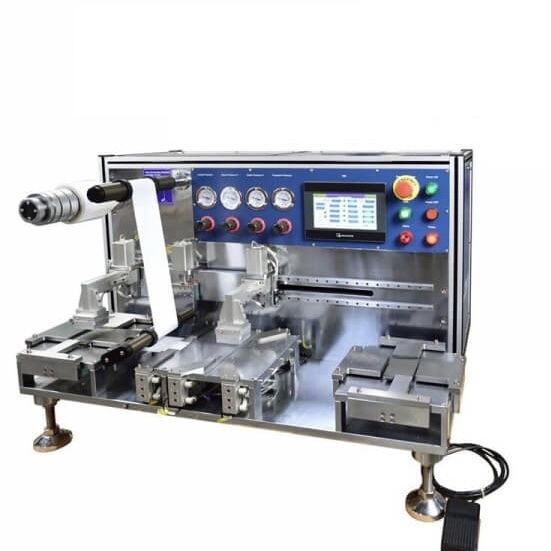

TMAX-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.

Features

1. PLC Touch Screen Control allows easy condition setting

2. Continuous "Z" fashion stacking with a separator

3. Auto electrode pick-up & stacking via vacuum suction manipulator

4. Adjustable mechanical fixture for accurate electrodes positioning

5. Unreeling rotors for separator film feeding

6. Auto-tension control for separator film delivery

7. One set of 80x50mm stocking die fixture is included for immediate use.

Specifications

Working Voltage	AC220V 50/60Hz
Power	1KW
Stackable Size	160x160mm
Stackable Layers	Up to 100 layers
Max. Electrode Thickness	Piled up thickness < 10 mm
Aligning Accuracy	±0.5 mm for stacked electrodes
Acceptable Separator Roll Size	I.D>3'' (76mm) O.D<9.8'' (250mm)
Stacking Fixture	One customized stacking die fixture is included for immediate use. Allowable customization size: Max.  160mm x 160mm; Min.  40 mm x 40 mm
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package.
Product Dimensions	960 mm L x 680 mm W  x 690 mm H
Weight	500 kg
Compliance	CE Certified
Warranty	One year limited warranty with lifetime support
