cassie@lionbatterymachine.comSeawater Immersion Test Chamber For Li-Ion Battery Research And Testing
Introduction
The battery seawater immersion tester is mainly used for soaking the battery in seawater atroom temperature for 2 hours (seawater is a simulated seawater component with aconcentration of 3.5% NaCl solution), and the depth of seawater in the water tank should besufficient to submerge the tested battery.
According to standards
GB/T31467.3 "Lithium ion power battery packs and systems for electric vehicles - Part 3:
Safety requirements and testing methods"
8.2.6.2 Test method 1a in GB38031-2020 "Safety Requirements for Power Batteries forElectric Vehicles".

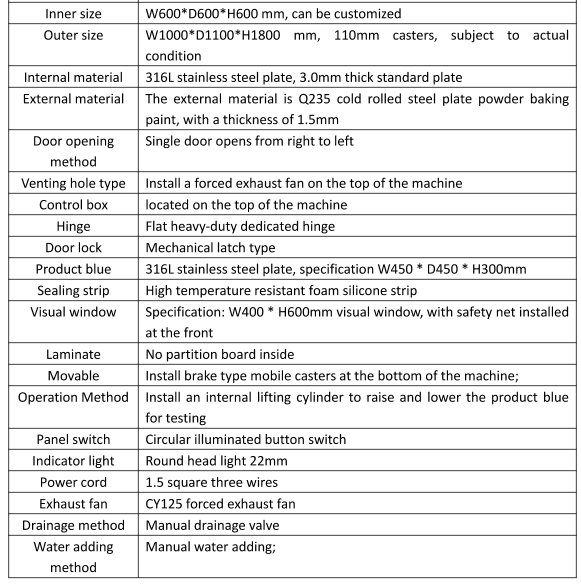

Technical parameters
Using the power supply
1. Voltage 220V/50Hz single-phase
2. Power 1KW
3. Current 5A

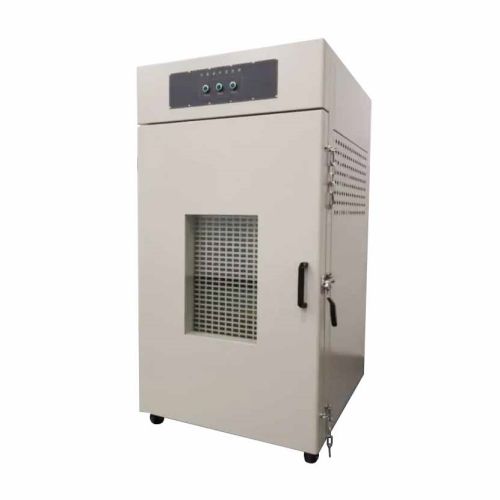

Picture for reference
