Ⅰ、Equipment Introduction：

1.1 Application area：

The equipment is mainly used for the observation of internal defects of products in the battery industry, semiconductor parts production, electronic product processing, solid substrate, electronic product packaging, power supply and other industries.

1.2 Introduction to equipment functions and principles：

The equipment emits X-rays through the X-ray generator and penetrates the inside of the tested object. The image intensifier receives the X-rays and takes images and photographs. The defects of the tested object are determined manually according to the images.

Ⅱ、Main Parameters:

Ⅲ、Equipment component description：

3.1 Micro focus X-ray generator and control system;；

3.2 X-ray detection imaging system;

3.3 X-ray protection box;

3.4 Electrical control system;

3.5 Control PC and image processing;

3.6 Automatic power-off protection device;

3.7 Three color light equipment status reminder;

3.8 Photoelectric induction control device;

3.9 The metal plate and perspective window of the whole machine are embedded with lead plate to ensure radiation safety and prevent radiation leakage;

3.10 Navigation device;

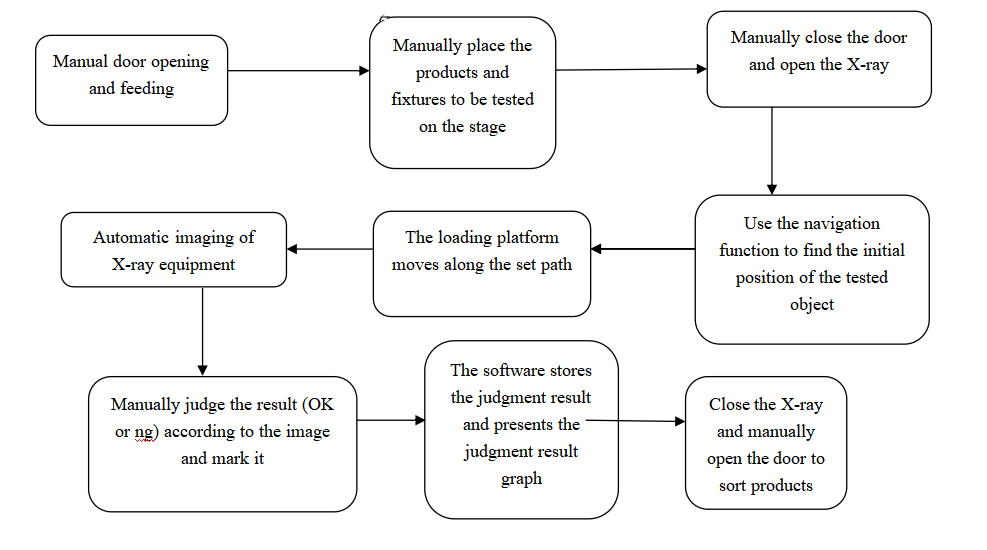

Ⅳ、Process operation process requirements：

Ⅴ、General configuration and standard of equipment：

5.1  Equipment appearance color: warm gray 1C (or subject to the customer's color plate).

5.2  Measured 1m away from the equipment (operation position), the equipment noise is ≤ 75db.

5.3  The equipment complies with the safety standards of China for electromechanical equipment.

5.4 Size：L1200mm×W1100mm×H1830mm（The specific size shall be subject to the actual object）

5.5 Total weight: 760KG

5.6 Ambient temperature：25±3℃

5.7 Ambient humidity: ≤ 60% RH (no condensation)

5.8 Power：2.5KW

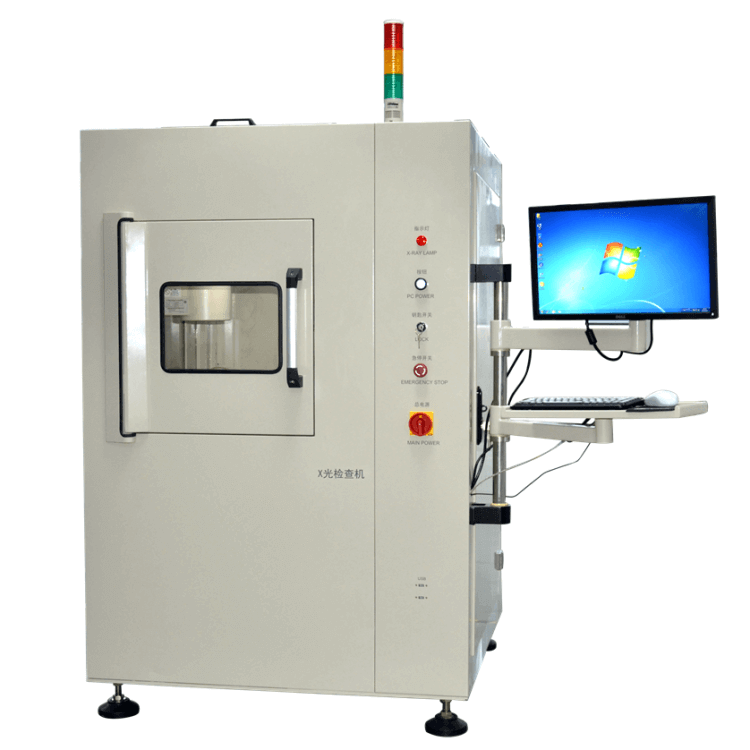

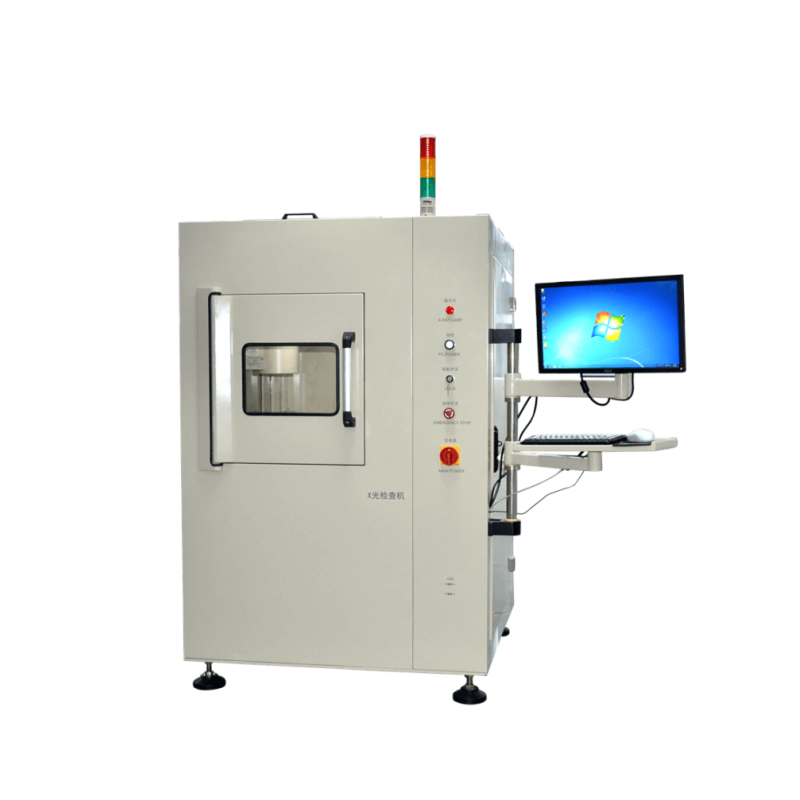

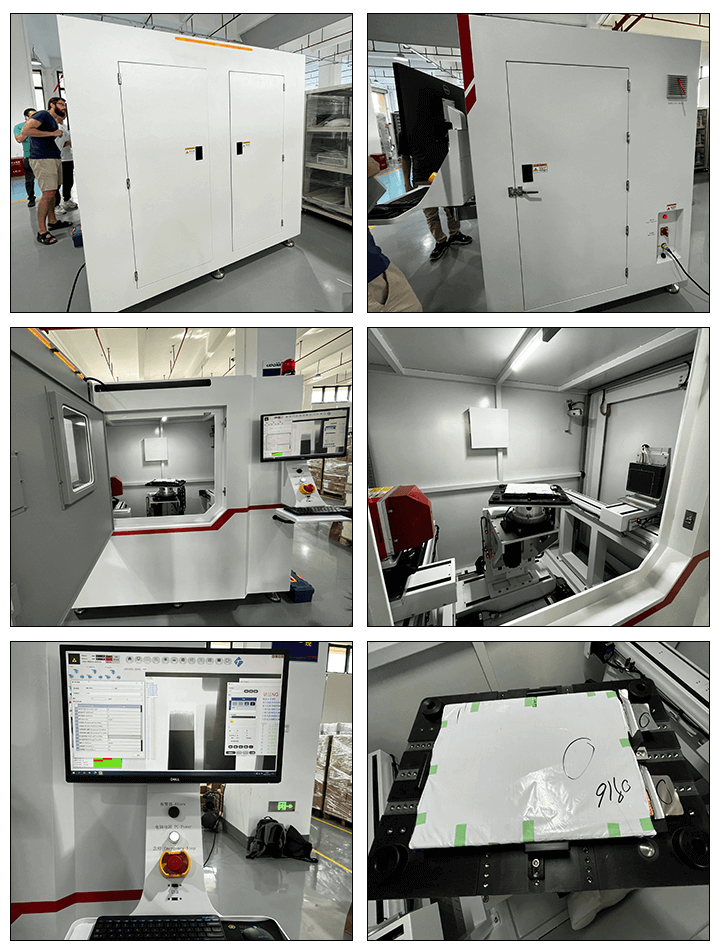

Product Image
