Model number

EQ-STC

EQ-3ESTC-Al

EQ-3ESTC15

EQ-3ESTC15P

Structure

Full stainless steel SS304

Aluminium Alloy : LY12 (dedicated to use at high voltage > 4.5V)

Full stainless steel SS304

Full stainless steel SS304 with Digital Pressure Gauge

Max. Cell Thickness

6mm (cathode+separator+anode)

Features

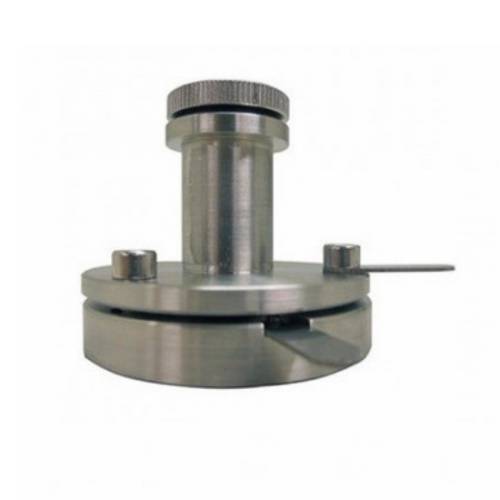

1. A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling

2. Sealed by electrolyte corrosive-proof PTFE O-rings (click picture below left to order spare )

3. Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. (click pic below right to order spare )

4. Easy to separate after testing

5. Small enough to be put in and taken out from a glove box

· 24 mm O.D. insert which can accept 15mm diameter electrodes.

· Sealed by electrolyte corrosive-proof PTFE O-rings.

· Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC.

· Adjustable spring tension on top to accept various electrode thicknesses.

· Easy to separate after testing.

· Small enough to be put into and taken out from a glove box.

Max. Working Temperature

250 ºC

200℃

Optional

1. Please select the insert size in the option bar. 5, 10, 12, 15, 19, 20, and 24 mm diameter inserts are available.

2. Anti-corrosive Au coating on the cell internal and inserts is an option.

· The Digital Pressure Gauge for EQ-3ESTC15P: 1/4NPT fitting with the pressure range of -30" Hg to 0 and to 100 psi (Vacuum to Atmosphere and to Positive Gas Pressure)
