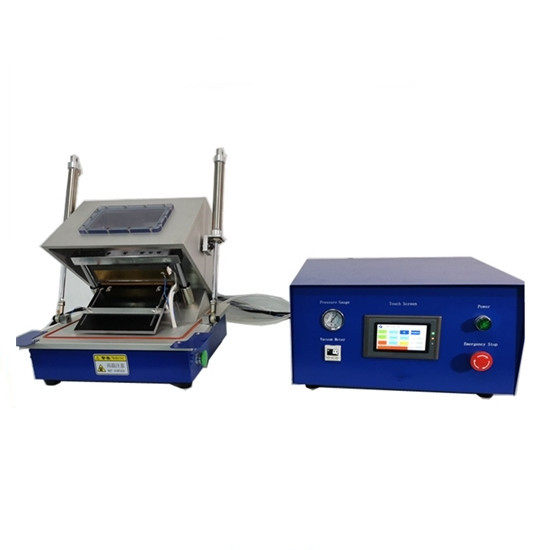

LN-YF pouch cell pre sealing machine is suitable for vacuum hot sealing of pouch cell after electrolyte filling and standing.
This battery vacuum sealing machine can automatically complete the vacuum heat crimping of the aluminum-laminated film via control vacuum pump and pneumatic hot sealing components.
Main features
*The sealing head is made of copper material. Compared with similar products, it has better heat transfer effect, saves power, improves work efficiency, and saves energy;
*The upper and lower head pressure can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
*The upper and lower heads are driven by air cylinders and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately
*Ensure the parallelism requirements after edge sealing;
*Through the perspective window, we can observe the changes of the cavity during work.
*The cover cavity is driven by an air cylinder and guided by a rotating guide sleeve, which can move up and down flexibly and be guided precisely to ensure the tightness of the product.
*Can be used for batteries of different specifications, easy to adjust.
*The main sealer and control box are designed separately, so the machine can work in the glove box or on the assembly line.
*Simple operation, beautiful appearance, small size and light weight.
|
Model Number |
LN-YF200 |
LN-YF300 |
LN-YF400 |
|
Chamber |
The chamber is made of aluminum alloy, which is corrosion resistant and has a firm structure; |
||
|
Vacuum degree |
The vacuum degree can be adjusted up to -95Kpa (the buyer shall provide the vacuum pump); |
||
|
Head temperature |
Room temperature～250℃, temperature adjustable; |
||
|
Temperature control accuracy |
±2℃; |
||
|
Heat sealing pressure |
0～7Kg/cm2 adjustable; |
||
|
Heat sealing time |
0～99 seconds adjustable; |
||
|
Edge sealing width |
5(can be customized) |
||
|
Maximum edge sealing length |
200mm |
300mm |
400mm |
|
Seal thickness range |
60~300um |
||
|
Seal thickness accuracy (mm) |
Sealing thickness difference between any two points<15um |
||
|
Air consumption |
About 0.2L compressed gas per seal once. |
||
|
Working speed of air compressor |
≥180 times/h |
||
|
power |
Using 300w heating tube, the power consumption when heating is about 0.6KW. |
Using 500w heating tube, the power consumption when heating is about 1KW. |
Using 500w heating tube, the power consumption when heating is about 1KW. |
|
Power Supply |
220V/50Hz; |
||
|
Compressed air source |
0.5～0.8Mpa; When used in the glove box, the cylinder power source must use the same working gas used in the glove box; |
||
|
Working chamber |
470mm*485mm*435mm |
570mm*485mm*435mm |
770mm*485mm*435mm |
|
Control box |
420mm*325mm*225mm |
420mm*325mm*225mm |
420mm*325mm*225mm |
|
Equipment weight |
About 60Kg |
About 90kg |
About 120kg |
