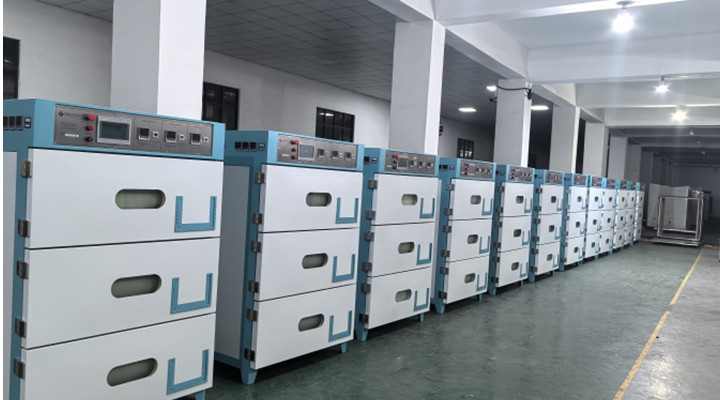

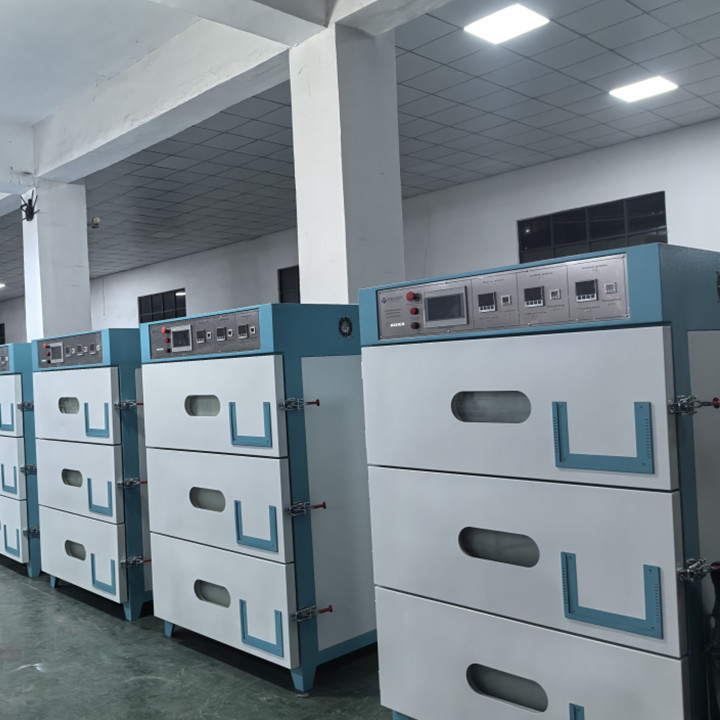

cassie@lionbatterymachine.comThis product is suitable for the vacuum baking process of various materials. It adopts industry-leading uniform temperature technology with temperature fluctuation of +2℃, vacuum chamber-0.098 Mpa can be maintained for more than 24 hours, and multiple quality and safety protection are ideal equipment to ensure drying effect.
Function Features
1.AISET three-position PID temperature controller is selected for temperature control, which has high temperature control resolution.
2.Temperature probe is made of Taiwan Hualing and placed in the back of the vacuum chamber to reflect the working temperature quickly and truly.
3.Triple over-temperature protection device automatically disconnects heating when exceeding the set temperature to ensure the safety of materials and equipment.
4.Equipped with timed shutdown function, timed after constant temperature, automatic shutdown at the end of baking time, each layer can be independently timed.
5.Air blowers of all layers can be opened independently, and can be used as cooling blowers when stopping heating.
6.Select high-quality SUS stainless steel seamless electric heat pipe, which can raise temperature rapidly and save energy and durable.
Structural Characteristics
1.The vacuum chamber is heated by surrounding hot air, and the design of circulating duct is innovated to ensure high precision and uniform temperature in the chamber.
2.The material of inner chamber is T3.9mm high quality SUS stainless steel, which can resist corrosion of battery slurry and electrolyte.
3.Multilayer insulation material constitutes a sealed insulation layer to prevent heat loss and effectively solve the problem of temperature crossing in adjacent warehouse and heat generation on the outer wall.
4.The door is a double-layer tempered glass structure with over-pressure protection function. When the air pressure in the chamber is too high, it can automatically deflate, so that the air pressure in the chamber can be restored to the allowable range.
5.The vacuum chamber and the door are equipped with silica gel sealing rings. The inside of the chamber -
0.098Mpa state can be maintained for more than 24 hours.
Main Specifications
Volume | 430L total |
Time settable range | 1~999hours |
Touch Screen | 7.0 inch color touch screen |
PLC | Programmable Controller |
Temperature Controller | Shanghai Yatai Brand PID Temperature Controller |
Vacuum Meter | Matsushita (Japan) Digital Display Vacuum Meter |
Operating Interface | Color touch screen + PID thermostat + digital vacuum meter; automatic ventilation, constant temperature, cooling and other actions can be settled |
Chamber Size | 300 mm(H)*800mm(W)*600mm(L) each layer |
Power | 3KW (Peak Power) each layer |
Power Supply | Three-phase 380V |
Matching Gas Source | Vacuum：-0.095～-0.1Mpa Compressed air：0.4～0.5Mpa Dry air：0.1～0.2Mpa |
Working Temperature | RT～150℃ |
Temperature Control Accuracy | ±1℃ |
Uniformity of Temperature Distribution | Temperature difference of each place in the working chamber is ≤±2℃ |
Heating Rate | It takes about 28 minutes from room temperature (25℃) to rise to 80℃ |
Heating Mode | Electric heating, surrounded hot air circulation, each layer is independent |
Over-temperature Protection | Each layer is equipped with double mechanical over-temperature protection to measure temperature independently. |
Alarm Mode | Alarm light + buzzer on |
Chamber Vacuum Degree | 0 ~ - 0.098 Mpa, the vacuum degree maintained above 96% after 24 hours of holding pressure. |
Pressure Transition Velocity | less than 1 minute |
Chamber Material | SUS Stainless Steel Plate |
Machine Shell Material | Made of SECC steel plate with plastic spraying on the surface. |
Overall Size | 1810mm(H)*1470mm(W)*1060mm(L) |
Weight | 800KG |
