Brand :
LinengItem NO :
LN-RMCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockTel :
+86-13506084915Whatsapp:
+86-13506084915WeChat:
18659217588Email:
cassie@lionbatterymachine.comCharacteristics of equipment：

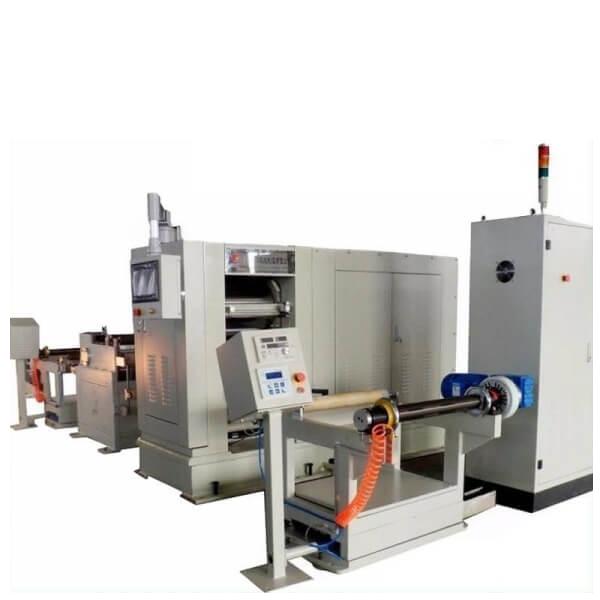

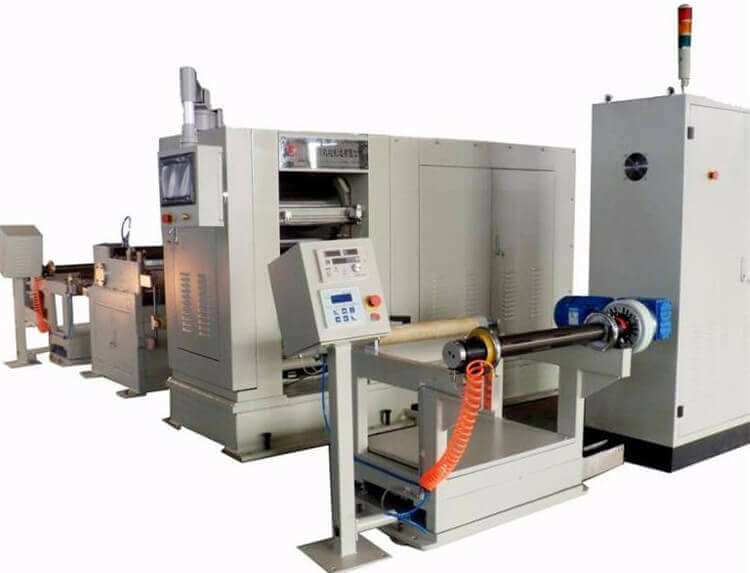

LN-RM adapt to continuous rolling process for all kinds of lithium battery anode and cathode.
1. Rolling speed: 2~12r/pm, CVT adjustable.
2. Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68
3. Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.
4. Roller gap adjustment range: 0~2mm
5. Roller gap adjustment accuracy:1μm
6. Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling force:3000KN We provide a full ranges of Li ion cell making Machine.
Specifications
|
Item Type |
RM500 |
RM600 |
RM800 |
|
Roller size |
500*500mm |
600*600mm |
800*800mm |
|
Pole sheet width |
200~500mm |
200~550mm |
300~750mm |
|
Output speed |
2~11rpm |
2~10rpm |
3~12rpm |
|
Roll straightness speed |
4~17m/min |
4~19m/min |
6~30m/min |
|
Roller surface roughness |
Ra≤0.2 |
Ra≤0.2 |
Ra≤0.2 |
|
Roll cylindrical degree |
≤2.0μm |
≤2.0μm |
≤2.0μm |
|
Roll thickness accuracy |
±2.0μm |
±2.0μm |
±2.0μm |
|
Roll pressure range |
100~300t |
100~300t |
100~300t |
|
Roll gap adjustment range |
0~2.0mm |
0~2.0mm |
0~2.0mm |
|
Roll gap adjustment accuracy |
1μm |
1μm |
1μm |
|
Tension adjustment range |
2.2~20kg |
2.2~20kg |
2.2~20kg |
|
Orderly winding error |
±0.5mm |
±0.5mm |
±0.5mm |
|
Retractable roll diameter |
Max:Ø550mm |
Max:Ø550mm |
Max:Ø550mm |
|
Air pressure |
0.5MPA above |
0.5MPA above |
0.5MPA above |
|
Power |
15KW |
18KW |
35KW |
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
