cassie@lionbatterymachine.comPerformance characteristics
1. Servo motor drive, automatic oil supply, simple operation, low noise;
2. Manual pressure regulation, stronger pressure control, large pressure, better locking stability;
3. Various functions can be modified flexibly: laminating function, independent waste discharge, winding, on-line slitting, etc.
Application
Self-adhesive, mobile phone accessories, electronic shielding materials, protective film, optical adhesive, AB adhesive, double-sided adhesive, backlight, foam, copper aluminum foil, silicone rubber and other materials
Technical parameters
Machine type | LN-P350 | LN-P450 |
Template area | 350*320mm | 450*420mm |
Maximum input width | 355mm | 450mm |
Die cutting speed | ≤300pcs/min | ≤300pcs/min |
Material feeding accuracy | ≤80±0.1mm | ≤80±0.1mm |
Pressure regulation accuracy | 0.01mm | 0.01mm |
Overall dimension(L*W*H) | 1950*1250*1800mm | 2200*1400*1800mm |
Voltage power | 220V/5KW/AC | 380V/7KW/AC |
Machine weight | 1700kg | 2200kg |

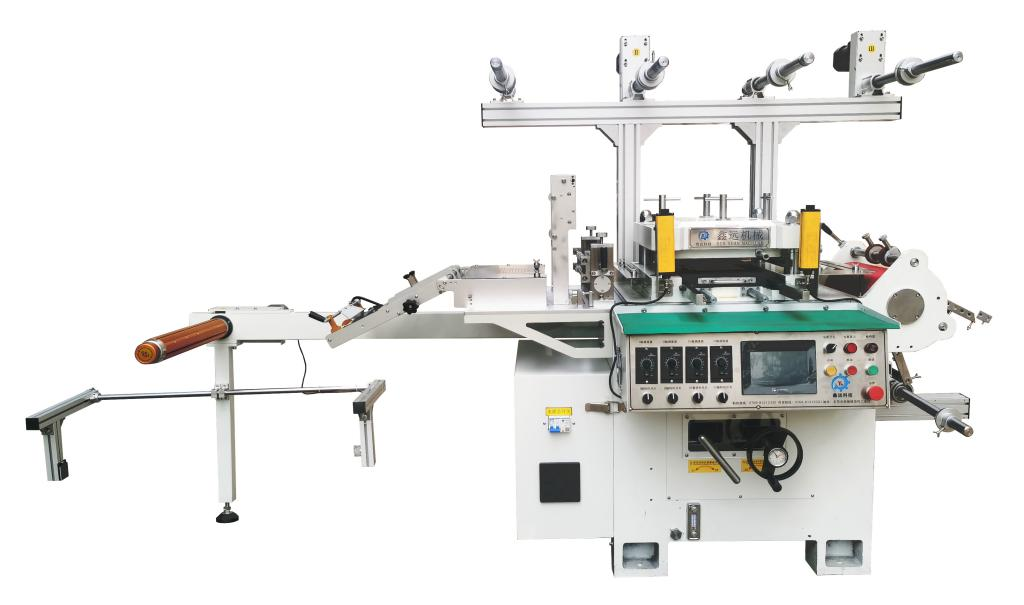

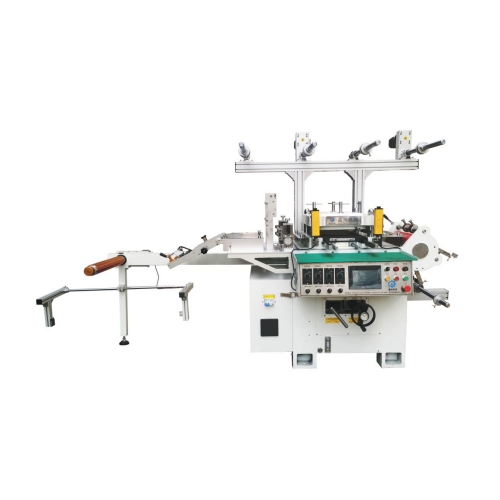

Picture for reference
