cassie@lionbatterymachine.comPerformance characteristics
1. Servo drive, PLC program control, simple operation;
2. Stepper motor cutting, cutting length, quantity, feeding speed can be freely set;
3. Can cut different specifications at the same time, with the function of jumping;
4. Equipped with imported electric eye color cutting, higher precision.
Application
Cutting of PET/PVC film, tape, insulation material, Mylar sheet, rubber, silicone, foam, sponge, electronic tape, heat shrink sleeve, cloth and various electronic materials.
Technical parameters
Machine type | LN-TQ350 | LN-TQ450 |
Cutting width | 1-350mm | 1-450mm |
Cutting speed | 100-300 cut/min | 100-300 cut/min |
Cutting accuracy | ±0.1mm | ±0.1mm |
Machine size | 1300*920*1100mm | 1300*1050*1100mm |
Voltage power | 220V/1.5KW/AC | 220V/1.8KW/AC |
Machine weight | 250kg | 280kg |

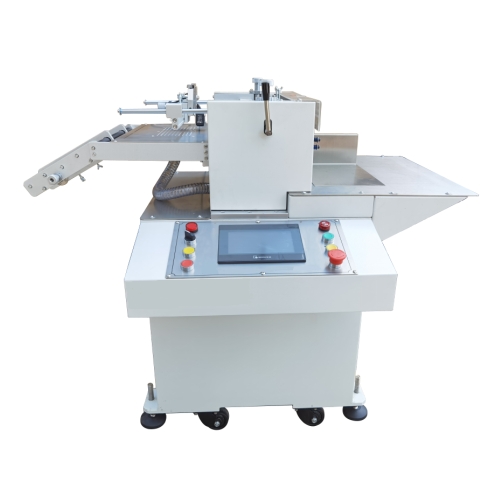

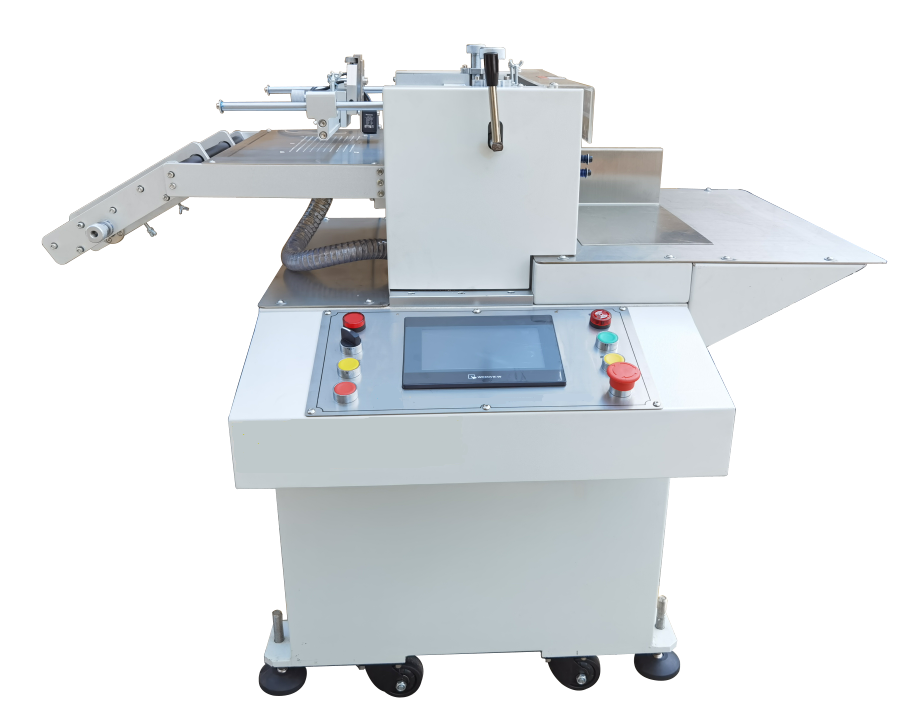

Picture for reference
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
