Brand :
LinengItem NO :
LN-D300Compliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockTel :
+86 13174506016Whatsapp:
+86 13174506016WeChat:
18659217588Email:
cassie@lionbatterymachine.comPerformance characteristics
1. Servo motor drive, automatic oil supply, simple operation, low noise;
2. The pressure adjustment stroke is relatively large, suitable for all kinds of knife dies and molds;
3. Electric pressure regulation, accurate and fast pressure regulation, greatly improve the efficiency of the adjustment machine;
4. Unique roller hole positioning system, easy to achieve multiple automatic positioning.
Scope of application:
Mobile phone accessories, protective film, double-sided tape, backlight, dust filter, frame glue, film, foam, copper aluminum foil, silicone rubber and other materials
Technical parameters
Machine type | LN-D300 | LN-D350 | LN-D450 |
Template area | 310*300mm | 350*320mm | 450*420mm |
Maximum input width | 310mm | 350mm | 450mm |
Die cutting speed | ≤300pcs/min | ≤300pcs/min | ≤200pcs/min |
Material feeding accuracy | ≤80±0.1mm | ≤80±0.1mm | ≤80±0.1mm |
Pressure regulation accuracy | 0.01mm | 0.01mm | 0.01mm |
Overall dimension(L*W*H) | 1400*1450*1300mm | 1500*1500*1300mm | 1600*1550*1450mm |
Voltage power | 380V/4.5KW/AC | 380V/4.5KW/AC | 380V/6.5KW/AC |
Machine weight | 1400kg | 1500kg | 2000kg |

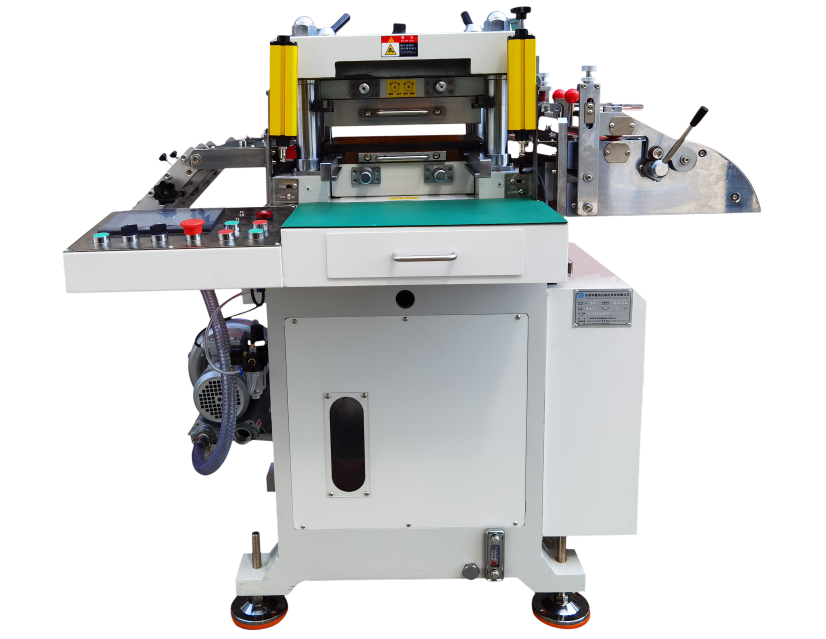

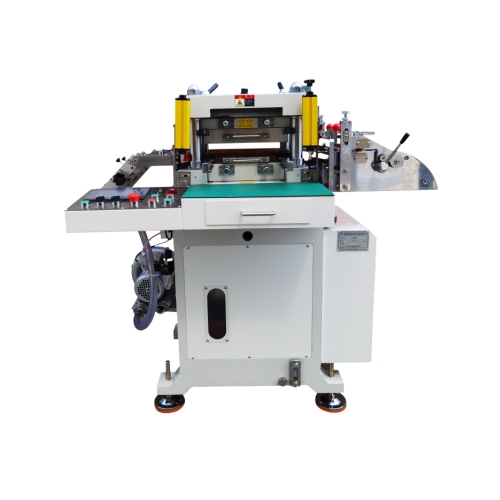

Picture for reference
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
