cassie@lionbatterymachine.comPerformance characteristics
1. Servo motor drive, automatic oil supply, simple operation, low noise;
2. The pressure adjustment stroke is relatively large, suitable for all kinds of knife dies and molds;
3. Electric voltage regulation, accurate and fast pressure regulation, greatly improve the efficiency of the adjustment machine;
4. Various functions can be modified flexibly: fitting function, independent waste discharge, winding, online slicing, etc.
Application
Self-adhesive, mobile phone accessories, electronic shielding materials, protective film, optical adhesive, AB adhesive, double-sided adhesive, backlight, foam, copper aluminum foil, silicone rubber and other materials
Technical parameters
Machine type | LN-DP300 | LN-DP350 | LN-DP450 |
Template area | 310*300mm | 350*320mm | 450*420mm |
Maximum input width | 310mm | 350mm | 450mm |
Die cutting speed | ≤300pcs/min | ≤300pcs/min | ≤200pcs/min |
Material feeding accuracy | ≤80±0.1mm | ≤80±0.1mm | ≤80±0.1mm |
Pressure regulation accuracy | 0.01mm | 0.01mm | 0.01mm |
Overall dimension(L*W*H) | 1800*1550*1800mm | 1900*1600*1800mm | 1950*1650*1850mm |
Voltage power | 380V/5KW/AC | 380V/5KW/AC | 380V/7KW/AC |
Machine weight | 1500kg | 1600kg | 2100kg |

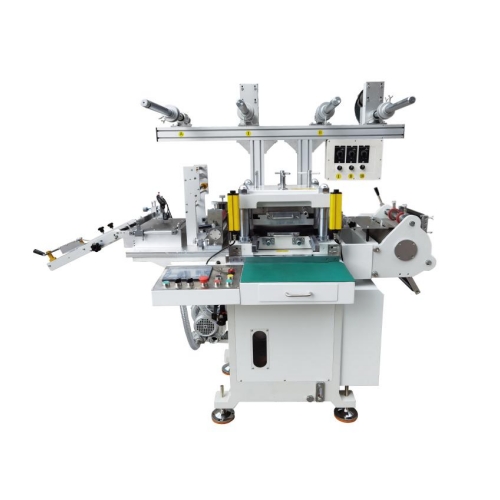

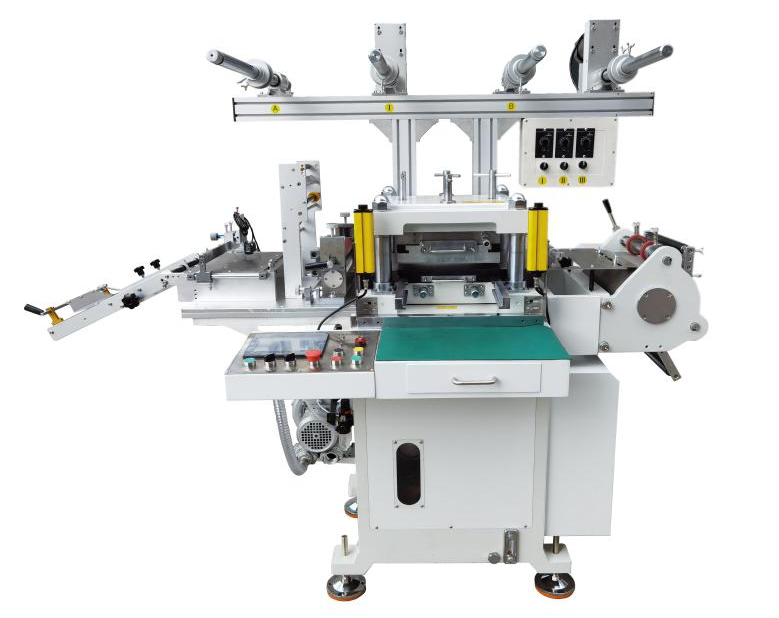

Picture for reference
