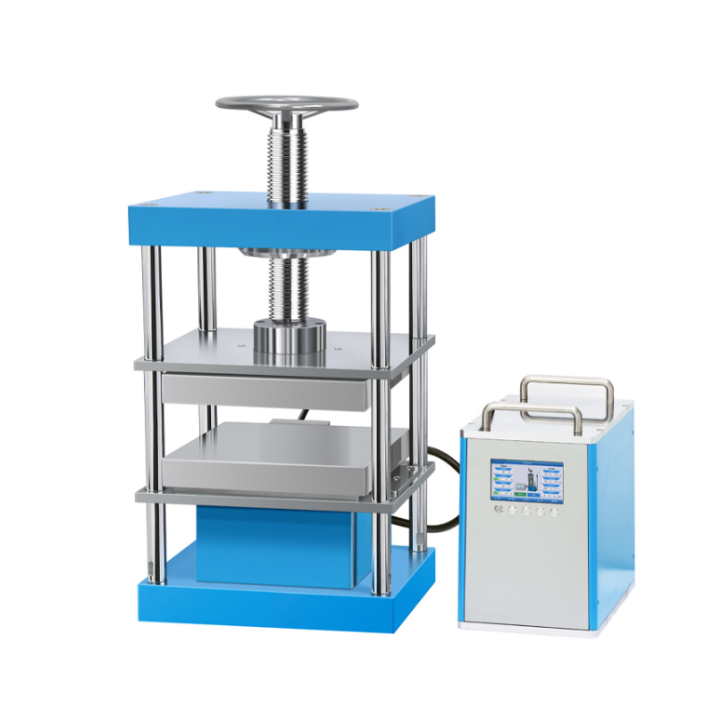

RYJ-600F series double plate heat press is a split type and widened heat press developed by our company based on the original manual heat press based on the market demand. This machine meets the needs of customers who need large-tonnage and large-area sample heating, and can be used for high-temperature and high-pressure compression experiments on powder samples, granular samples, plastic films, rubber products and other samples.
Specification
Model |
PCD-600E
|
PCD-600F
|
Mold Heating Temperature Power(Optional) | RT-300°C/2.5KW | RT-300°C/4KW |
Pressure Range | 0-40T | 0-40T |
Pressure Accuracy | 0.1 ton | |
Pressurization Process | 20-stage Programmed Pressurization with Pressure Profile Display | |
Pressure Holding Time | Each stage can last up to 32,768 seconds,or work indefinitely without timing | |
Constant Temperature Time | 1S~∞S
| |
Temperature Control Accuracy | 0.1 ℃ | |
Display Screen | 7-inches Touch Screen | |
Heating Method | Multi-stage Heating or Cooling Program | |
Heat insulation Methods | Imported Heat insulation Board | |
Cooling Methods | Water-cooled Rapid Cooling [Optional Water Chiller] | |
Mold Dimensions | 300 x 300 mm | 400 x 400mm |
Working Space | 300x220 mm | 400x220 mm |
Power Supply Power | 220V/110V Customizable | |
Thermostat (Dimensions/Net Weight/Gross Weight) | 350x460x480 mm (LXW X H)/ 109 kg/126 kg | |
Tablet Press (Dimensions/Net Weight/Gross Weight) | 800x 600 x900 mm (KX PxH)/390kg/442 kg | 900x700x1000 mm/580kg/632 kg |
Water Chiller (Dimensions/Weight) | 550x340x430mm/11kg | |
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
