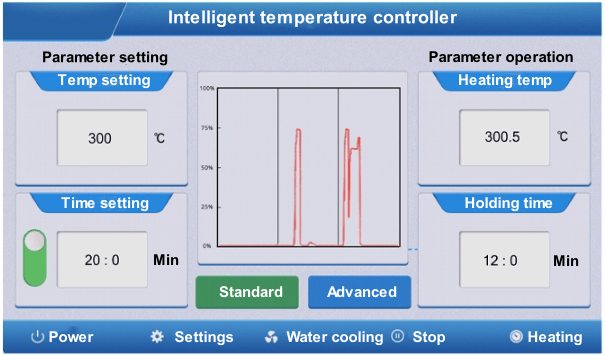

Operation interface (Standard mode)

Standard interface: The heating temperature and constant temperature time of the mold can be set separately on this interface.

Water-cooling button: The power supply of the water-cooling machine is connected to the thermostat, which can control the on and off of the water-cooling machine.

Heating button: Click this button and the mold will start heating.

Stop button: Click this button and the mold will stop heating.

Timing switch: Used to turn the timing function on and off.

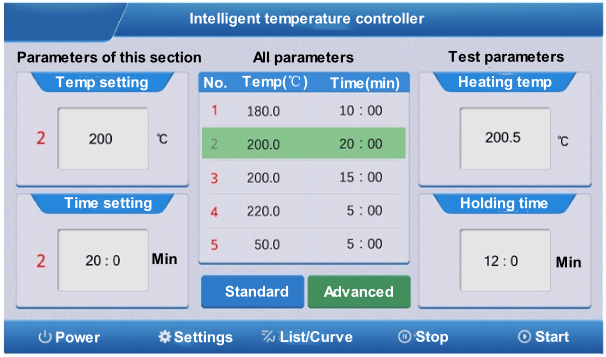

Operation interface (Advanced mode)

Start button: In the advanced mode, by clicking the start button, the hydraulic press can be heated up according to the multi-stage heating program.

Stop button: During the heating process, clicking the stop button can stop the heating.

List curve: Current display status. The list and curve graph can be switched.

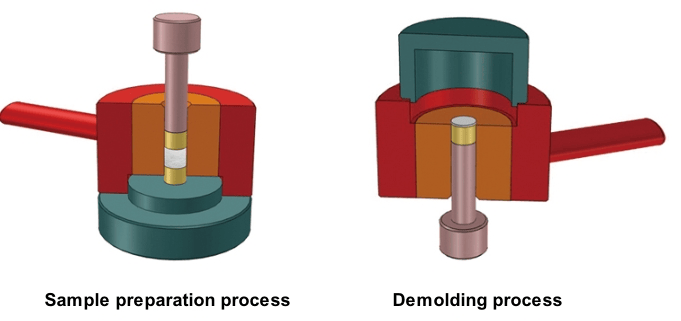

Schematic diagram of mold operation

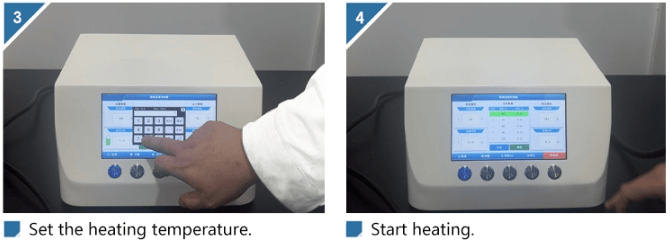

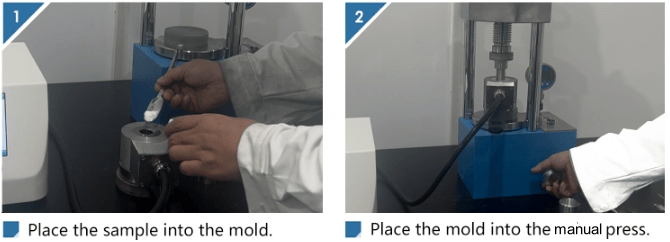

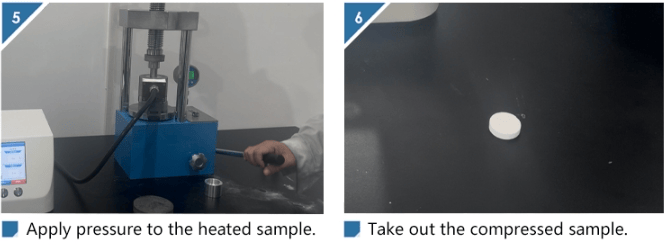

Operation steps

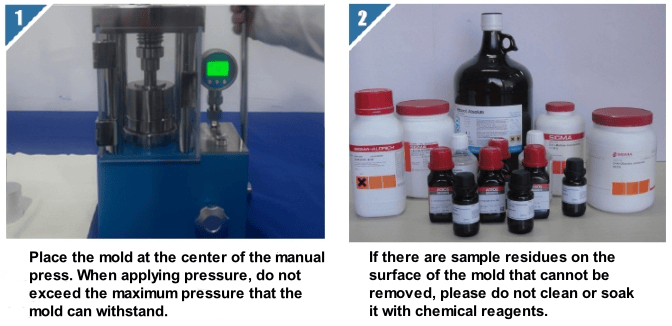

Mold usage and maintenance

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

Technical parameters
