Brand :
LinengItem NO :
LN-PCH-GCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockWhatsapp:
+86 18659217588WeChat:
18659217588Email:
cassie@lionbatterymachine.com
Parameter
Model | LN-PCH-G |
Compressed sample shape |
|
Heating temperature | Room temperature -500℃ |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ10, Φ13, Φ15, Φ20, Φ30, Φ40mm(M) |
Cavity depth | 45mm(N) |
Dimensions | Φ78*138mm, Φ90*138mm(L*H) |
Power supply | 220V/300W |
Mold weight | 2.7kg |
Dimension diagram |
|

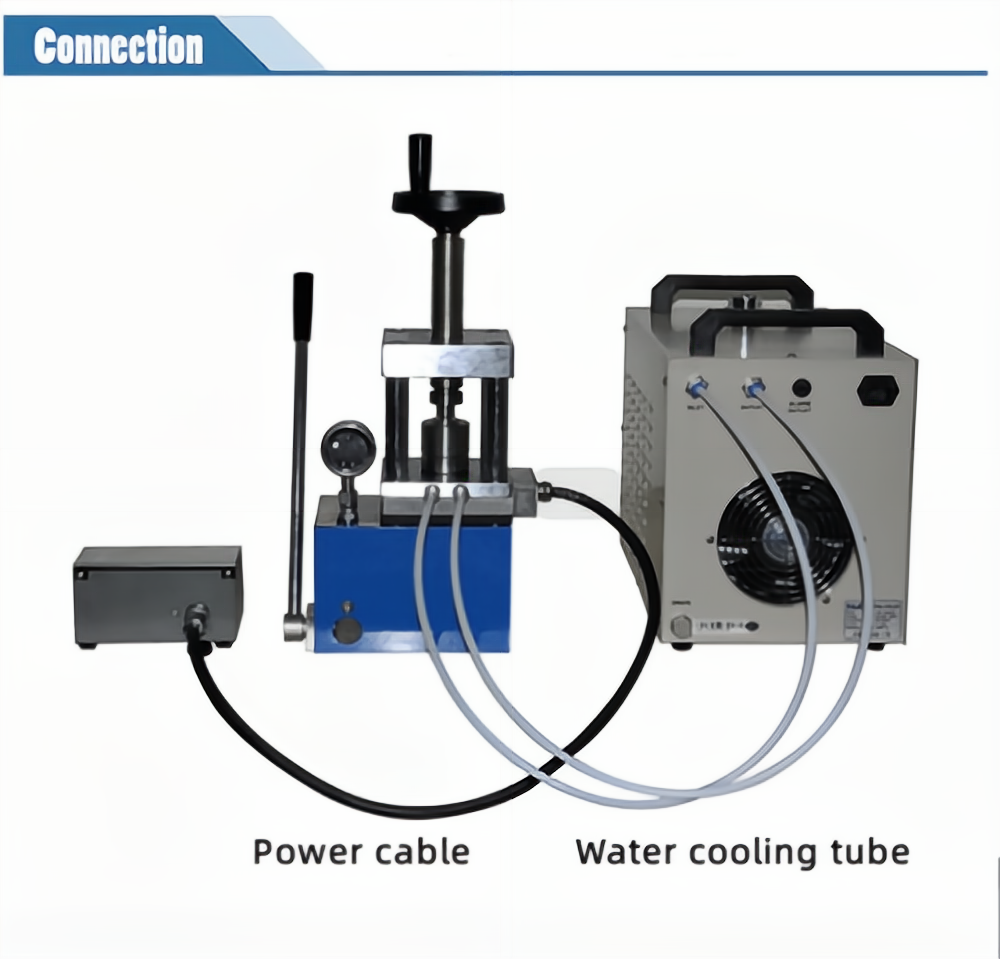

Diagram of pipeline connection

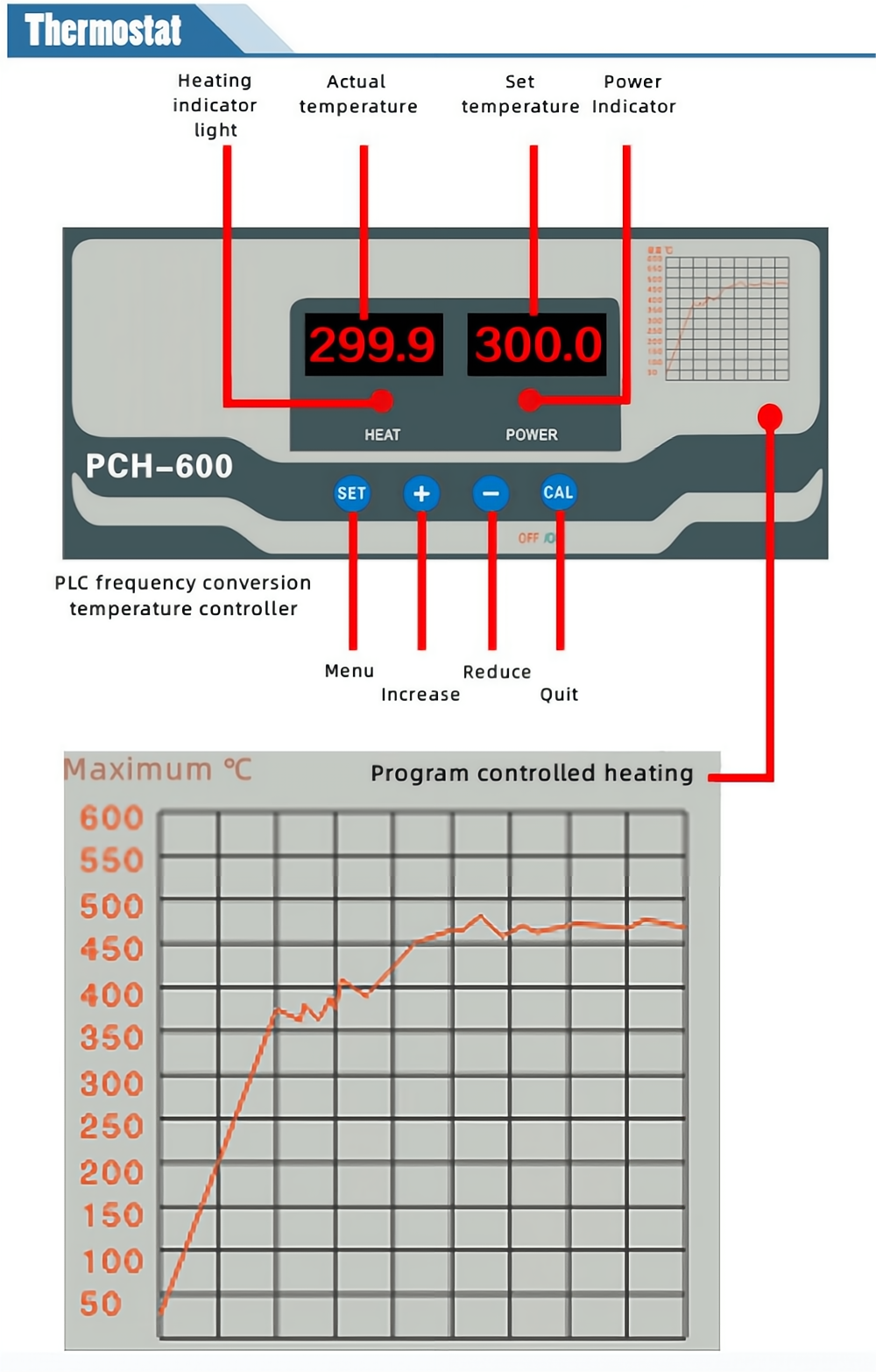

Temperature Controller

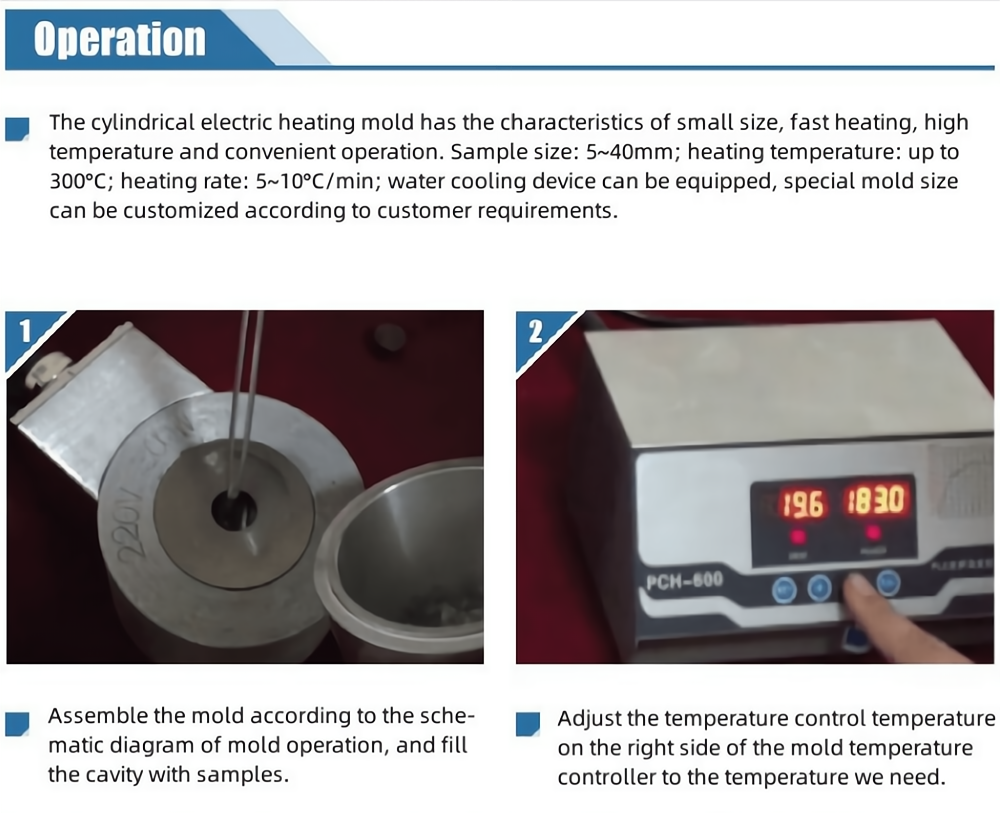

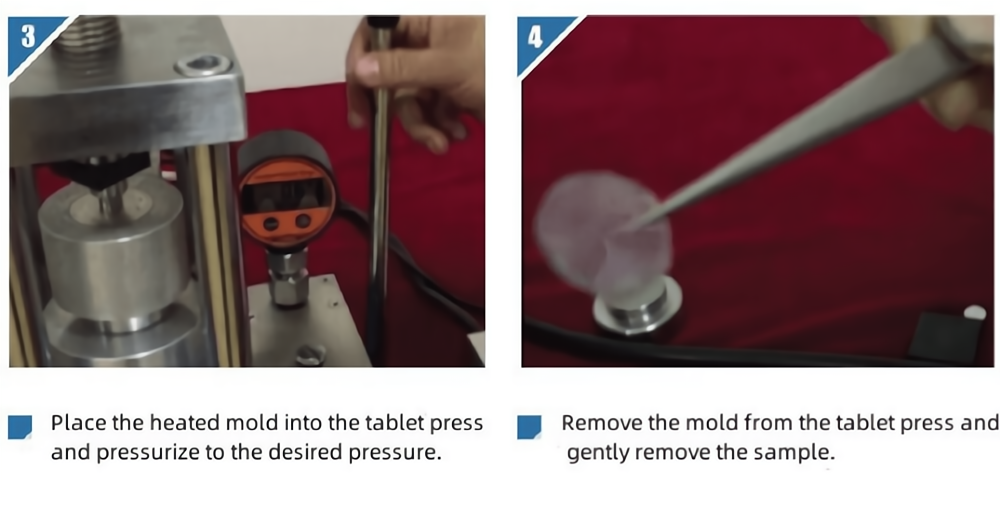

Mold sample preparation operation steps

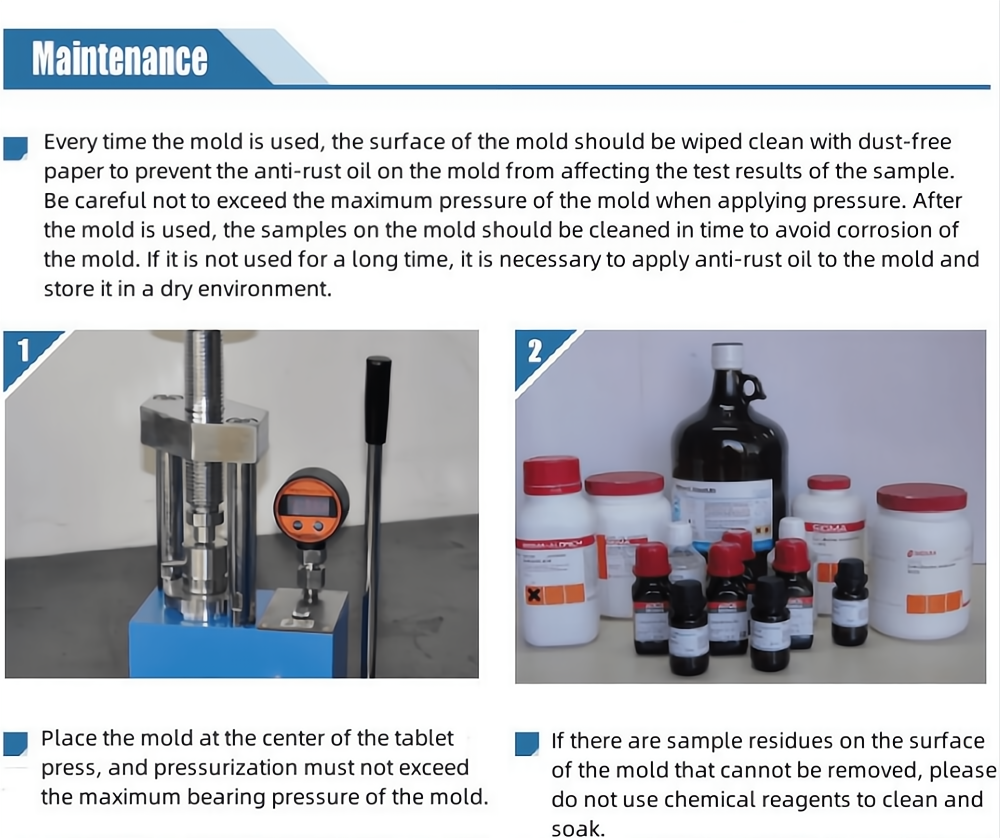

Mold use and maintenance
