Brand :
LinengItem NO :
LN-ZTH-09Compliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockTel :
+86-13506084915Whatsapp:
+86-13506084915WeChat:
18659217588Email:
cassie@lionbatterymachine.comWorkflow
Specification
Project | Parameters |
Liquid injection method | Vacuum filling or atmospheric pressure filling |
Sealing mode | Thermal sealing |
Head temperature control accuracy | ±3°C |
Head working temperature range | 170~200°C |
Vacuum holding pressure | 5KPA value change within 60S |
Liquid injection accuracy | Liquid injection ≥125g ±8%; liquid injection <125g ±1g |
Production efficiency | Model 150 ≥12ppm; Model 300 ≥8ppm |
Qualification rate | ≥99% |
Crop rate | ≥98% |
Dimension | W8000 × L3000 x H2350mm |
Weight/load | >650Kg/M2 |
Power supply | AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz |
Compressed air | 0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min |
Model | LN-ZTHZYS-150 | LN-ZTHZYX-300 |
Cell length | 45~150mm | 120~300mm |
Cell width | 35~100mm | 80~200mm |
Cell thickness | 3~10mm | 4~12mm |

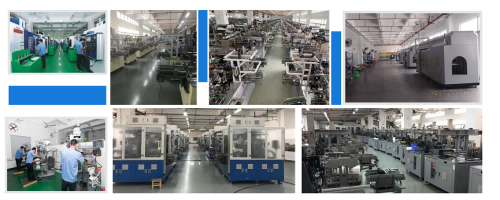

Production Assembly Plant
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
