cassie@lionbatterymachine.comLaboratory Compact Filtration System For Battery Electrode Slurry Filterate
LN-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.
SPECIFICATIONS
Power Requirements | Input: 100 - 240V AC; 50/60 Hz Output: DC12V, 0.4A Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found |
Structure | Made of SS304 |
Pump Flow Rate | 3L/min |
Absolute Vacuum Level | 65kPa |
Capacity | 750mL |
Filtration | 2 Filters included Filtration Pore Sizes: 100 mesh & 120 mesh |
Measuring Cup | One stainless steel cup is included for measuring slurry up to 700ml or 24oz Scribe lines on the inside facilitate the measurement |
Filter Container Dimensions | 140mm x 70mm x150mm |
Air Generator Dimensions | 150mm x 150mm x 200mm |
Net Weight | 5kg |
Warranty | One year limited with lifetime support |

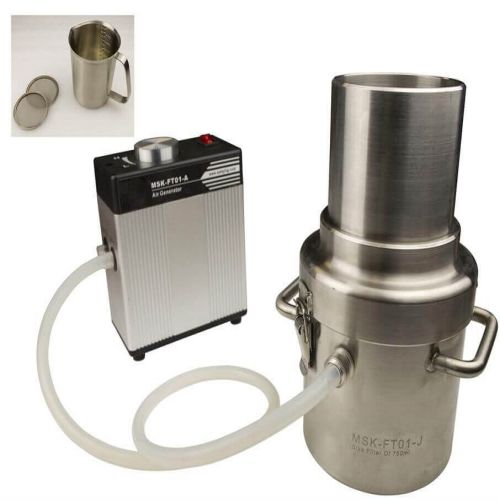

Product Image
