cassie@lionbatterymachine.comLi-Ion Battery PP/PE Separator Film
Universal type battery separator paper PP/PE
Product Name: lithium-ion battery separator
Appearance: Milky white porous films
Function: Used in separating lithium ion battery cathode and anode,to prevent short circuit
Product characteristics:
1.Uniform pore size distribution
2.Low obturator temperature
3.High film rupture temperature
Application: Communications products battery,Tool Battery.
Product performance
Properties | Unit | T01 | T02 | T03 | |
Thickness | microns | 16 | 20 | 25 | |
Porosity | % | 37 | 38 | 36 | |
Air Permeability | sec/100cm | 550 | 500 | 640 | |
Tensile Strength | (MD) | grams/cm² | 1400 | 1500 | 1500 |
(TD) | grams/cm² | 1300 | 1400 | 1000 | |
Elongation | (MD) | % | 70 | 70 | 70 |
(TD) | % | 190 | 140 | 160 | |
Puncture Strength | grams | 690 | 650 | 640 | |
90°C thermal contraction | MD | % | 3.0 | 3.1 | 3.1 |
TD | % | 1 | 1 | 1 | |
120°C thermal contraction | MD | % | 16.6 | 15.6 | 15.2 |
TD | % | 12.2 | 11.5 | 11.2 | |
Safety performance(After manufacturing battery)
NO. | Item | Criteria | Remarks |
1 | Vibration test | No fire,noexplosion | |
2 | Drop Test | ||
3 | Short circuiting Test | 100(o) | |
4 | High temperature test | 7 days | No fire, no explosion Capacity≥80%C5 |
5 | Heating Test | 130*10min | No fire,noexplosion |
6 | Overcharge testing(NO PCM) | 3C 4.6V | |
7 | Storage Characteristics | Remaining Capacity≥85% |

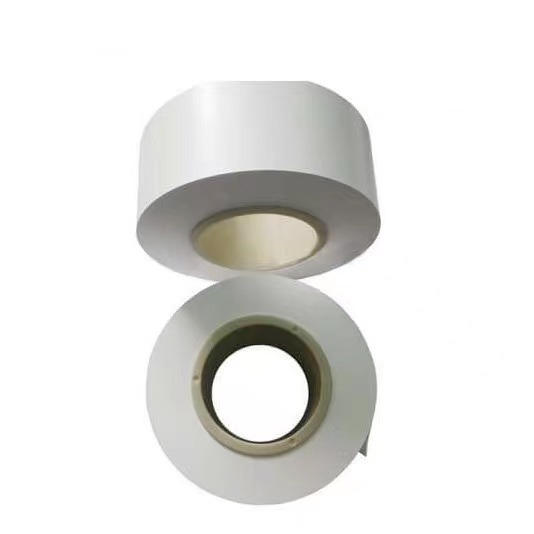

Product Image
