cassie@lionbatterymachine.comLaboratory Rain Tester For Battery Testing and Research
Application
This rain test box is a device for spraying water through the water nozzle (hole) of the swing pipe to simulate the natural rainfall situation and used as the equipment for the protection level test of the electrical equipment protected by the enclosure. It is mainly used to assess and determine whether the housings and seals of electrical and electronic products, various electrical appliances and various lighting fixtures can ensure the good working performance of equipment and components after or during the water test. It is also an indispensable test equipment for scientific research units and quality inspection institutions.
It is widely used in lighting, electrical and electronics, automobiles, motorcycles, home appliances, electromechanical and other industries.
Technical parameters
Model | IPX34-225 | IPX34-500 | IPX34-1000 | IPX34-1400 | |
Inner box size (W*D*H, mm) | 600*600*600 | 800*800*800 | 1000*1000*1000 | 1400*1400*1400 | |
Outer box size (W*D*H, mm) | 900*1080*1650 | 1100*1480*1750 | 1200*1500*1950 | 1900*1600*2350 | |
Swing tube radius (mm) | 200 | 300 | 400 | 600 | |
Diameter of turntable (mm) | 300 | 400 | 500 | 500 | |
Power | 220V/3KW | 220V/3KW | 220V/3KW | 220V/4KW | |
Turntable bearing capacity (kg) | 20 | ||||
Adjustable height of turntable (mm) | 100 | ||||
Technical index
| Sample rack speed | 1 ～3r/min, adjustable | |||
Diameter of spray hole | 0.4mm | ||||
Aperture spacing of spray hole | 50mm | ||||
Spray hole flow | 0.07 L/min +5% | ||||
Rain pressure | 80～150Kpa | ||||
Swing angle range of spray pipe | 120°, 320° (close) | ||||
Nozzle angle | 120°（IPX3）、180°（IPX4） | ||||
Swing angle | 120°（IPX3）、320°（IPX4） | ||||
Swing tube swing | Maximum ±180° (close) | ||||
Swing speed of spray pipe | IPX3 15th order / min; IPX4 5th order / min | ||||
Test duration | 10min or more time (can be set) | ||||
Preset test time | 1S～999h59m59s, adjustable | ||||
Inner box material | Stainless steel | ||||
Outer box material | Stainless steel/paint | ||||
Control system | Siemens touch screen control system | ||||
Drive way | Panasonic Servo Motor | ||||
Environmental conditions | Temperature 5℃～40℃ Relative temperature ≤85％RH | ||||
Safety protection device | Power overload/short circuit protection Ground protection Water shortage protection Alarm sound prompt | ||||

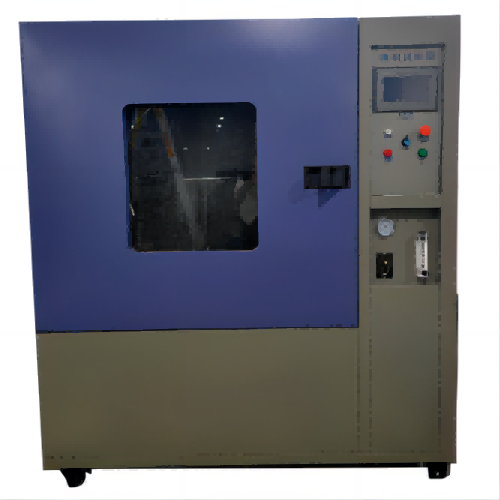

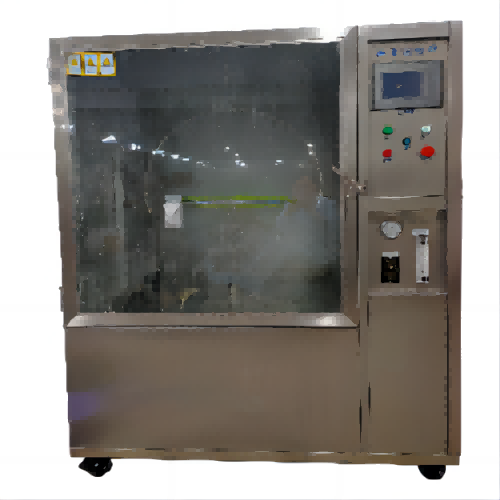

Picture for reference
