Design volume / effective volume

150L/ 100L

Material contact with the inner liner of the mixing drum: 304 stainless steel .

Mixing drum  specification mm

Approx . Ф650*450

1), discharge valve: G2" (DN50) ;

2), barrel body with push-pull handle, barrel bottom with 4 casters

(2 directional + 2 universal) .

3), cooling/insulation: with bottom/side wall cooling outer jacket, cooling water inlet/outlet with water pipe live connector .

2. Upper cover.

Top cover specification

mm

Matching with the corresponding mixing drum .

Material in contact with the material : 304 stainless steel .

1) With 2 small windows, a spotlight, DN25 filling pipe (with 304 ball valve), vacuum pumping/releasing interface, vacuum pressure gauge and other spare receiver;

2) The upper lid is fixed and locked with the mixing drum using quick locking clips .

Stirring

shaft/stirring

paddle speed

Approximately 25 rpm .

Stirring shaft / stirring paddle material :

304 stainless steel .

Stirring motor

power

1. 1kw/4P .

Speed reducer             (matched with motor)

nmrv-090-60-fa-f2-y90s- 1. 1kw

Stirring paddle form

Combined frame type mixing paddle .

4. Mixing principle.

The combined frame stirring paddle does downward pressure type self rotation to ensure that the material is not deposited .

5. Vacuum guarantee system: 5 skeleton oil seals are installed together, and the vacuum source is provided by the user .

1) The vacuum degree reaches ≤ -0 .098Mpa, keep it not lower than -0 .08Mpa for 24 hours .

2) Sealing method : A, static seal using "O" seal ; B, skeleton oil seal .

6 、Distribution box: The mixing switch, spotlight switch, operation emergency stop   and other functional operations in the operation of the equipment are carried out on the distribution cabinet .

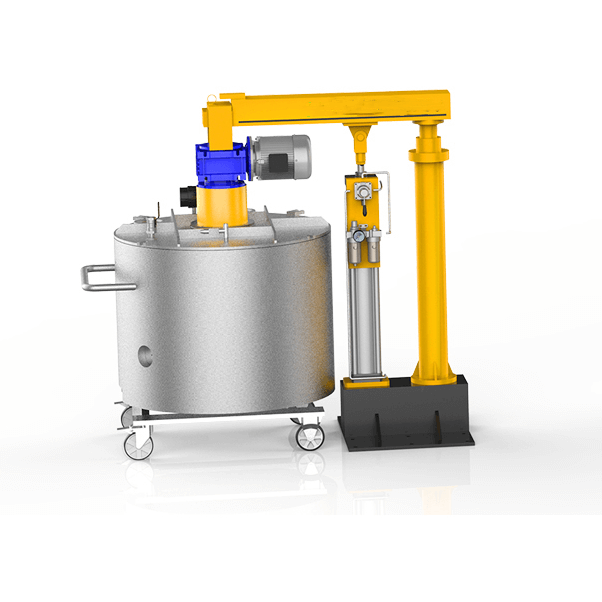

7. Lifting device: φ125x800 lifting cylinder 1, with 1 safety pin

1

Shaft Seals

Fluorine rubber

Abrasion and corrosion resistant

2

Scraper

Polyester plastic

(Imported from UK) Abrasion and corrosion resistant

3

Scraper spring

SUS304

4

Seals

Silicone

5

Shaft assembly

Ternary ethylene propylene

+SUS304

6

Cartridge

SUS316

Accuracy deviation value:    ± 0.03mm (max . ± 0.05mm),

diameter deviation value:  ± 0.3mm 80 mesh to 200 mesh available

( 120 mesh standard)

7

Housing/upper and lower cover/scraper holder

SUS304

8

DC Motor

24V/60W

9

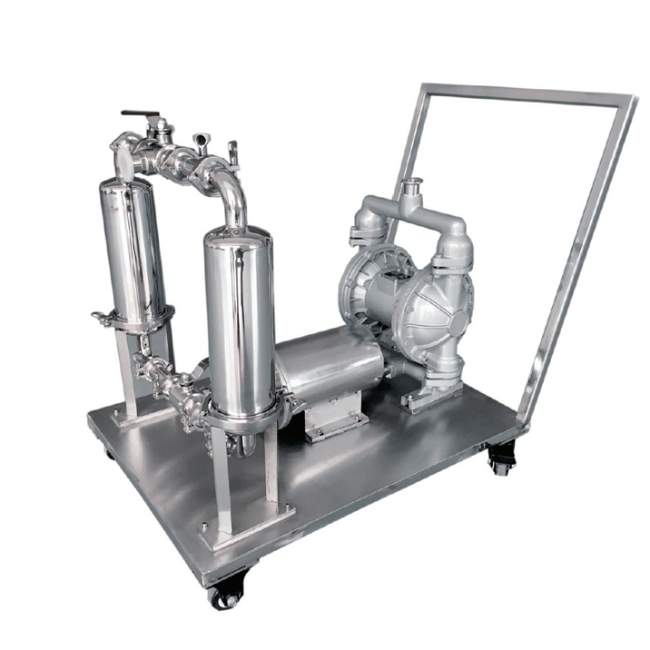

Diaphragm Pumps

Aluminum alloy QBY-25

1

Liquid level sensor

Homemade

1

2

Solenoid Valve

Taiwan

1

3

Intermediate Relay

China

1

4

Intermediate relay base

China

1

5

Rotary Switch

China

1
